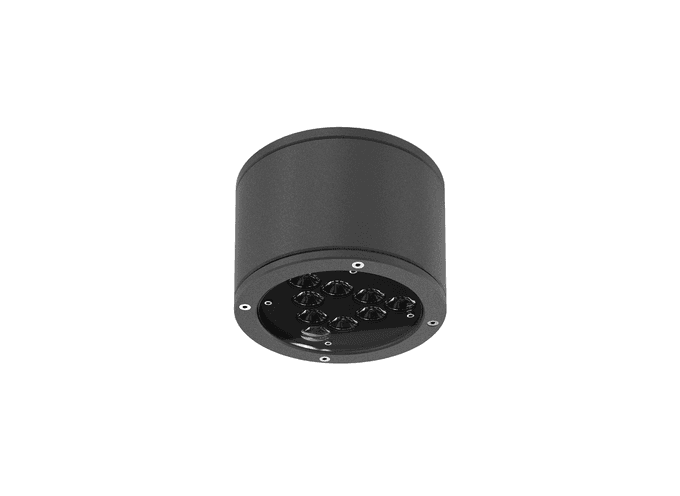

XNRC 6-12LED 8-15W
XNRC 6-12LED 8-15W

General data

Application	Illumination of general areas of the buildings.
Key Advantages	Wide range of effect options and controls.
Product Shape	Round, Oval
Type	Illumination
Mounting	Ceiling, Surface

Electrical data

Main Feed AC [V]	220-240
Main Feed Frequency [Hz]	50-60
Total Consumption [W]	8, 11, 15
IEC Protection Class	I, II

Optics

Diffuser Material	LENS
TYPE OF CONTROL	ON/OFF

Technical data

Total Consumption [W]	8, 11, 15
Diffuser Material	LENS
Body Material	Anodized aluminium
Beam Angle [°]	7,5, 15, 25, 45, 10x41, 16x90, AS
Light Distribution DIR/IND	DIR
LED Color Temperature CCT [K]	2700, 3000, 4000, 6500, RGB, RED, GREEN, BLUE, AMBER
Color Rendering Index [CRI]	80, 90
MacAdam step	3
TYPE OF CONTROL	ON/OFF
Body Color	Anthracite
Ingress Protection [IP]	65, 67
Mechanical Protection [IK]	10
Main Feed AC [V]	220-240
Diameter ø [mm]	140

Description:

A professional LED surface reflector designed for mounting on a ceiling to illuminate indoor or outdoor buildings. Wide variety of lighting effects options to expose and highlights the details of any illuminated objects.

Key Advantages:

Wide range of effect options and controls.

Downloads:

Datasheet:

Technical illustrations:

Mounting instructions:

Certificates:

Photometric data:

General data

Application	Illumination of general areas of the buildings.
Key Advantages	Wide range of effect options and controls.
Product Shape	Round, Oval
Type	Illumination
Mounting	Ceiling, Surface

Electrical data

Main Feed AC [V]	220-240
Main Feed Frequency [Hz]	50-60
Total Consumption [W]	8, 11, 15
IEC Protection Class	I, II

Optics

Diffuser Material	LENS
TYPE OF CONTROL	ON/OFF

Technical data

Total Consumption [W]	8, 11, 15
Diffuser Material	LENS
Body Material	Anodized aluminium
Beam Angle [°]	7,5, 15, 25, 45, 10x41, 16x90, AS
Light Distribution DIR/IND	DIR
LED Color Temperature CCT [K]	2700, 3000, 4000, 6500, RGB, RED, GREEN, BLUE, AMBER
Color Rendering Index [CRI]	80, 90
MacAdam step	3
TYPE OF CONTROL	ON/OFF
Body Color	Anthracite
Ingress Protection [IP]	65, 67
Mechanical Protection [IK]	10
Main Feed AC [V]	220-240
Diameter ø [mm]	140

Housing

Body Material	Anodized aluminium
Body Color	Anthracite
RAL	Any on request

Light technical data

Light Source	LED
Total Consumption [W]	8, 11, 15
LED Color Temperature CCT [K]	2700, 3000, 4000, 6500, RGB, RED, GREEN, BLUE, AMBER
Color Rendering Index [CRI]	80, 90
MacAdam step	3
Beam Angle [°]	7,5, 15, 25, 45, 10x41, 16x90, AS
Light Distribution DIR/IND	DIR

Technical data

TA [°C]	-30 to +40
Ingress Protection [IP]	65, 67
Mechanical Protection [IK]	10
Corrosion Class	C4, C5

Dimensions

Diameter ø [mm]	140

Variations

Item	Code	Height	Diameter	W	Diffuser	CRI	Color K	Type of Control	IP	Color
XNRC 6LED 8W LENS lm 8W OOn 140 AN IP65/67 On Request	MI22XNRC6LED8W	140	140	8	LENS	ON REQUEST	ON REQUEST	ON REQUEST	65/67	ANTHRACITE
XNRC 9LED 11W LENS lm 11W OOn 140 AN IP65/67 On Request	MI22XNRC9LED11W	140	140	11	LENS	ON REQUEST	ON REQUEST	ON REQUEST	65/67	ANTHRACITE
XNRC 12LED 15W LENS lm 15W OOn 140 AN IP65/67 On Request	MI22XNRC12LED15W	140	140	15	LENS	ON REQUEST	ON REQUEST	ON REQUEST	65/67	ANTHRACITE
