XULH 18LED 642 LENS lm 18W OOn 698 AN IP67 On Request
Item No. MI24XULH18LED642
XULH 9-36LED

XULH 18LED 642 LENS lm 18W OOn 698 AN IP67 On Request

MI24XULH18LED642

General data
Key Advantages

Wide range of effect options and controls.

Product ShapeLinear
TypeIllumination
MountingI
Electrical data
Main Feed AC [V]220-240
Main Feed Frequency [Hz]50-60
Total Consumption [W]18
IEC Protection ClassI, II
Optics
DiffuserLENS
Type of ControlOn Request
Technical data
Total Consumption [W]18
DiffuserLENS
CCT [K]On Request
CRIOn Request
MacAdam step3
Type of ControlOn Request
Housing colorANODA
IP67
Mechanical Protection [IK]10
Main Feed AC [V]220-240
Dimensions (length, width, height)698 x 100 x 117 mm [LxWxH]
Weight [KG]14.00 kg
Description:

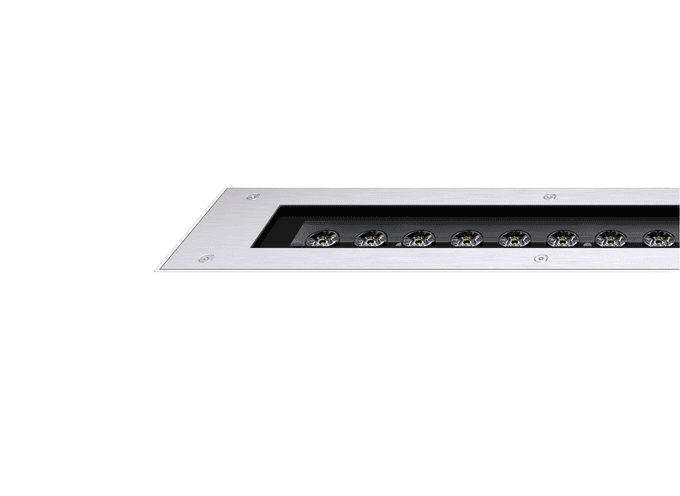

A professional linear lighting fixture designed for illumination of any application, such as landscapes, historic and/or modern buildings, facades, bridges. Wide variety of lighting effects options to expose and highlights the details of any illuminated objects.

Key Advantages:

Wide range of effect options and controls.

Downloads:
Datasheet:
1
Mounting instructions:
1
Certificates:
1
Photometric data:
1
/soft4net/img/project/icons/DO WSZYSTKICH PRODUKTOW/CE.svg
/soft4net/img/project/icons/AD - IP/67.svg
/soft4net/img/project/icons/BB - IK/10.svg
/soft4net/img/project/icons/J - MOUNTING/I.svg
General data
Key Advantages

Wide range of effect options and controls.

Product ShapeLinear
TypeIllumination
MountingI
Electrical data
Main Feed AC [V]220-240
Main Feed Frequency [Hz]50-60
Total Consumption [W]18
IEC Protection ClassI, II
Optics
DiffuserLENS
Type of ControlOn Request
Technical data
Total Consumption [W]18
DiffuserLENS
CCT [K]On Request
CRIOn Request
MacAdam step3
Type of ControlOn Request
Housing colorANODA
IP67
Mechanical Protection [IK]10
Main Feed AC [V]220-240
Dimensions (length, width, height)698 x 100 x 117 mm [LxWxH]
Weight [KG]14.00 kg
Housing
Housing colorANODA
FinishPowder coating
Light technical data
Light SourceLED
Total Consumption [W]18
CCT [K]On Request
CRIOn Request
MacAdam step3
Technical data
IP67
Mechanical Protection [IK]10
Corrosion ClassC4, C5
Dimensions
Dimensions (length, width, height)698 x 100 x 117 mm [LxWxH]
Weight [KG]14.00 kg
