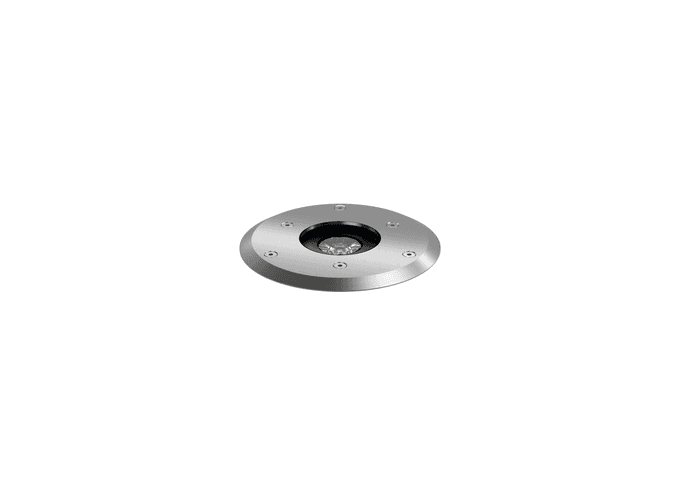

XURO 1LED 3W
XURO 1LED 3W

General data
Application

Illumination of walls/facades, buildings, bridges, landscapes.

Key Advantages

Wide range of effect options and controls.

Product ShapeRound, Oval
TypeIllumination
MountingIn-ground
Mounting Opening80
Electrical data
Main Feed AC [V]220-240
Main Feed Frequency [Hz]50-60
Total Consumption [W]3
IEC Protection ClassI, II
Optics
Diffuser MaterialLENS
TYPE OF CONTROLON/OFF, DALI, DMX
Technical data
Total Consumption [W]3
Diffuser MaterialLENS
Body MaterialAnodized aluminium, Stainless steel frame 316L
Beam Angle [°]7,5, 15, 25, 45, 10x41, WS1, WS2
Light Distribution DIR/INDDIR
LED Color Temperature CCT [K]2700, 3000, 4000, 6500, RED, GREEN, BLUE, AMBER
Color Rendering Index [CRI]80
MacAdam step3
TYPE OF CONTROLON/OFF, DALI, DMX
Body ColorAnode
Ingress Protection [IP]67
Mechanical Protection [IK]10
Main Feed AC [V]220-240
Diameter ø [mm]98
Description:

A professional LED in-ground reflector designed for illumination of any application, such as landscapes, historic and/or modern buildings, facades, bridges. Wide variety of lighting effects options to expose and highlights the details of any illuminated objects. Reflector designed to illuminate small objects such as fountains, landscape, etc.

Key Advantages:

Wide range of effect options and controls.

Downloads:
Datasheet:
1
Technical illustrations:
1
Mounting instructions:
1
Certificates:
1
Photometric data:
1
/soft4net/img/project/icons/DO WSZYSTKICH PRODUKTOW/CE.svg
/soft4net/img/project/icons/AD - IP/67.svg
/soft4net/img/project/icons/J - MOUNTING/I.svg
/soft4net/img/project/icons/Y + Z - CCT K + CRI/2700_80.svg
/soft4net/img/project/icons/Y + Z - CCT K + CRI/3000_80.svg
/soft4net/img/project/icons/Y + Z - CCT K + CRI/4000_80.svg
General data
Application

Illumination of walls/facades, buildings, bridges, landscapes.

Key Advantages

Wide range of effect options and controls.

Product ShapeRound, Oval
TypeIllumination
MountingIn-ground
Mounting Opening80
Electrical data
Main Feed AC [V]220-240
Main Feed Frequency [Hz]50-60
Total Consumption [W]3
IEC Protection ClassI, II
Optics
Diffuser MaterialLENS
TYPE OF CONTROLON/OFF, DALI, DMX
Technical data
Total Consumption [W]3
Diffuser MaterialLENS
Body MaterialAnodized aluminium, Stainless steel frame 316L
Beam Angle [°]7,5, 15, 25, 45, 10x41, WS1, WS2
Light Distribution DIR/INDDIR
LED Color Temperature CCT [K]2700, 3000, 4000, 6500, RED, GREEN, BLUE, AMBER
Color Rendering Index [CRI]80
MacAdam step3
TYPE OF CONTROLON/OFF, DALI, DMX
Body ColorAnode
Ingress Protection [IP]67
Mechanical Protection [IK]10
Main Feed AC [V]220-240
Diameter ø [mm]98
Housing
Body MaterialAnodized aluminium, Stainless steel frame 316L
Body ColorAnode
Light technical data
Light SourceLED
Total Consumption [W]3
LED Color Temperature CCT [K]2700, 3000, 4000, 6500, RED, GREEN, BLUE, AMBER
Color Rendering Index [CRI]80
MacAdam step3
Beam Angle [°]7,5, 15, 25, 45, 10x41, WS1, WS2
Light Distribution DIR/INDDIR
Technical data
TA [°C]-30 to +40
Ingress Protection [IP]67
Mechanical Protection [IK]10
Corrosion ClassC4, C5
Dimensions
Diameter ø [mm]98
Generating PDF...

Variations

Item
Code
Lenght
Width
Height
Diameter
W
Lumen
Output lm
Efficacy
lm/W
Diffuser
Beam
Angle
CRI
Color K
Type of
Control
IP
Color
XURO 1LED 3W LENS lm 3W OOn 98 AN IP67 On RequestMI212XURO1LED3W117983LENSON REQUESTON REQUESTON REQUEST67ANODE
