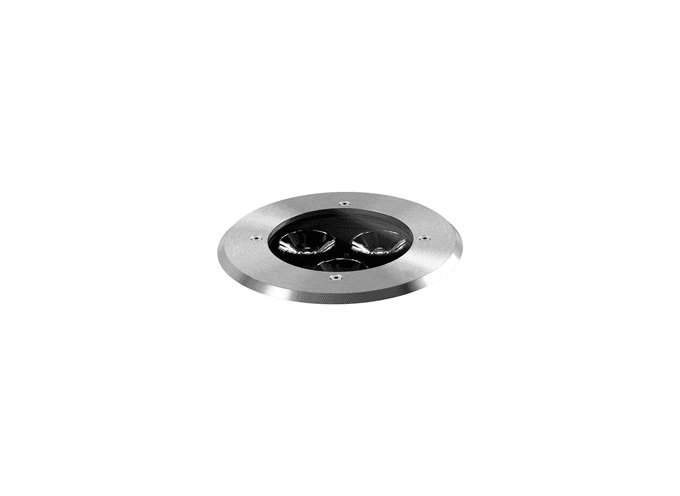

XURO 3LED 5W
XURO 3LED 5W

General data

Application	Illumination of walls/facades, buildings, bridges, landscapes.
Key Advantages	Wide range of effect options and controls.
Product Shape	Round, Oval
Type	Illumination
Mounting	In-ground
Mounting Opening	98

Electrical data

Main Feed AC [V]	220-240
Main Feed Frequency [Hz]	50-60
Total Consumption [W]	5
IEC Protection Class	I, II

Optics

Diffuser Material	LENS
TYPE OF CONTROL	ON/OFF, DALI, DMX

Technical data

Total Consumption [W]	5
Diffuser Material	LENS
Body Material	Anodized aluminium, Stainless steel frame 316L
Beam Angle [°]	7,5, 15, 25, 45, 10x41, 16x90, WS1, WS2, WS3, ST5
Light Distribution DIR/IND	DIR
LED Color Temperature CCT [K]	2700, 3000, 4000, 6500, RGB, RGB-W3000, RGB-W4000, RED, GREEN, BLUE, AMBER
Color Rendering Index [CRI]	80, 90
MacAdam step	3
TYPE OF CONTROL	ON/OFF, DALI, DMX
Body Color	Anode
Ingress Protection [IP]	67
Mechanical Protection [IK]	10
Main Feed AC [V]	220-240
Diameter ø [mm]	98

Description:

A professional LED in-ground reflector designed for illumination of any application, such as landscapes, historic and/or modern buildings, facades, bridges. Wide variety of lighting effects options to expose and highlights the details of any illuminated objects. Reflector designed to illuminate small objects such as fountains, landscape, etc.

Key Advantages:

Wide range of effect options and controls.

Downloads:

Datasheet:

Technical illustrations:

Mounting instructions:

Certificates:

Photometric data:

General data

Application	Illumination of walls/facades, buildings, bridges, landscapes.
Key Advantages	Wide range of effect options and controls.
Product Shape	Round, Oval
Type	Illumination
Mounting	In-ground
Mounting Opening	98

Electrical data

Main Feed AC [V]	220-240
Main Feed Frequency [Hz]	50-60
Total Consumption [W]	5
IEC Protection Class	I, II

Optics

Diffuser Material	LENS
TYPE OF CONTROL	ON/OFF, DALI, DMX

Technical data

Total Consumption [W]	5
Diffuser Material	LENS
Body Material	Anodized aluminium, Stainless steel frame 316L
Beam Angle [°]	7,5, 15, 25, 45, 10x41, 16x90, WS1, WS2, WS3, ST5
Light Distribution DIR/IND	DIR
LED Color Temperature CCT [K]	2700, 3000, 4000, 6500, RGB, RGB-W3000, RGB-W4000, RED, GREEN, BLUE, AMBER
Color Rendering Index [CRI]	80, 90
MacAdam step	3
TYPE OF CONTROL	ON/OFF, DALI, DMX
Body Color	Anode
Ingress Protection [IP]	67
Mechanical Protection [IK]	10
Main Feed AC [V]	220-240
Diameter ø [mm]	98

Housing

Body Material	Anodized aluminium, Stainless steel frame 316L
Body Color	Anode

Light technical data

Light Source	LED
Total Consumption [W]	5
LED Color Temperature CCT [K]	2700, 3000, 4000, 6500, RGB, RGB-W3000, RGB-W4000, RED, GREEN, BLUE, AMBER
Color Rendering Index [CRI]	80, 90
MacAdam step	3
Beam Angle [°]	7,5, 15, 25, 45, 10x41, 16x90, WS1, WS2, WS3, ST5
Light Distribution DIR/IND	DIR
