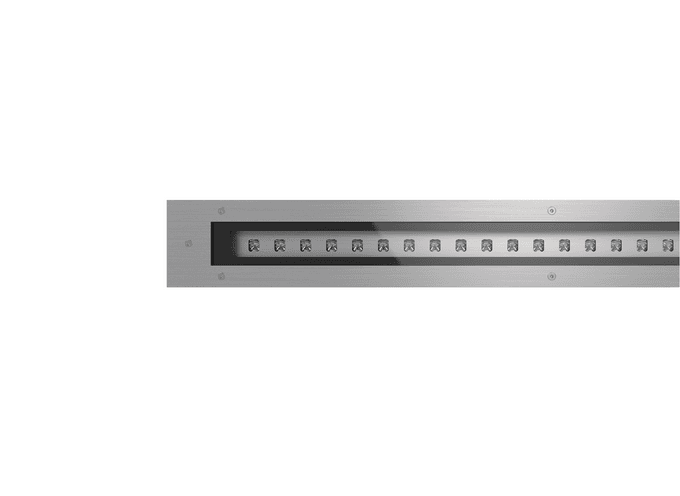

XWLH 9-36LED
XWLH 9-36LED

General data

Application	Illumination of walls/facades, buildings, bridges, landscapes.
Key Advantages	Wide range of effect options and controls.
Product Shape	Linear
Type	Illumination
Mounting	Recessed

Electrical data

Main Feed AC [V]	220-240
Main Feed Frequency [Hz]	50-60
Total Consumption [W]	9, 18, 27, 36
IEC Protection Class	I, II

Optics

Diffuser Material	LENS
TYPE OF CONTROL	ON/OFF, DALI, DMX

Technical data

Total Consumption [W]	9, 18, 27, 36
Diffuser Material	LENS
Body Material	Anodized aluminium, Stainless steel frame 316L
Beam Angle [°]	Asymmetric
Light Distribution DIR/IND	DIR
LED Color Temperature CCT [K]	3000, 4000, RGB, RGB-W3000, RGB-W4000, RED, GREEN, BLUE, AMBER
Color Rendering Index [CRI]	80, 90
MacAdam step	3
TYPE OF CONTROL	ON/OFF, DALI, DMX
Body Color	Anoda
Ingress Protection [IP]	65, 67
Mechanical Protection [IK]	10
Main Feed AC [V]	220-240

Description:

A professional linear lighting fixture designed for illumination of any application, such as landscapes, historic and/or modern buildings, facades, bridges. Wide variety of lighting effects options to expose and highlights the details of any illuminated objects.

Key Advantages:

Wide range of effect options and controls.

Downloads:

Datasheet:

Technical illustrations:

Mounting instructions:

Certificates:

Photometric data:

General data

Application	Illumination of walls/facades, buildings, bridges, landscapes.
Key Advantages	Wide range of effect options and controls.
Product Shape	Linear
Type	Illumination
Mounting	Recessed

Electrical data

Main Feed AC [V]	220-240
Main Feed Frequency [Hz]	50-60
Total Consumption [W]	9, 18, 27, 36
IEC Protection Class	I, II

Optics

Diffuser Material	LENS
TYPE OF CONTROL	ON/OFF, DALI, DMX

Technical data

Total Consumption [W]	9, 18, 27, 36
Diffuser Material	LENS
Body Material	Anodized aluminium, Stainless steel frame 316L
Beam Angle [°]	Asymmetric
Light Distribution DIR/IND	DIR
LED Color Temperature CCT [K]	3000, 4000, RGB, RGB-W3000, RGB-W4000, RED, GREEN, BLUE, AMBER
Color Rendering Index [CRI]	80, 90
MacAdam step	3
TYPE OF CONTROL	ON/OFF, DALI, DMX
Body Color	Anoda
Ingress Protection [IP]	65, 67
Mechanical Protection [IK]	10
Main Feed AC [V]	220-240

Housing

Body Material	Anodized aluminium, Stainless steel frame 316L
Body Color	Anoda
Finish	Powder coating

Light technical data

Light Source	LED
Total Consumption [W]	9, 18, 27, 36
LED Color Temperature CCT [K]	3000, 4000, RGB, RGB-W3000, RGB-W4000, RED, GREEN, BLUE, AMBER
Color Rendering Index [CRI]	80, 90
MacAdam step	3
Beam Angle [°]	Asymmetric
Light Distribution DIR/IND	DIR

Technical data

TA [°C]	-30 to +40
Ingress Protection [IP]	65, 67
Mechanical Protection [IK]	10
Corrosion Class	C4, C5

Variations

Item	Code	Lenght	Width	Height	W	Diffuser	CRI	Color K	Type of Control	IP	Color
XWLH 9LED 442 LENS lm 9W OOn 442 AN IP65/67 On Request	MI24XWLH9LED442	442	100	100	9	LENS	ON REQUEST	ON REQUEST	ON REQUEST	65/67	ANODA
XWLH 18LED 720 LENS lm 18W OOn 720 AN IP65/67 On Request	MI24XWLH18LED720	720	100	100	18	LENS	ON REQUEST	ON REQUEST	ON REQUEST	65/67	ANODA
XWLH 27LED 1004 LENS lm 27W OOn 1004 AN IP65/67 On Request	MI24XWLH27LED1004	1004	100	100	27	LENS	ON REQUEST	ON REQUEST	ON REQUEST	65/67	ANODA
XWLH 36LED 1282 LENS lm 36W OOn 1282 AN IP65/67 On Request	MI24XWLH36LED1282	1282	100	100	36	LENS	ON REQUEST	ON REQUEST	ON REQUEST	65/67	ANODA
