GLIDER GU10
GLIDER GU10

Dane elektryczne

IEC Protection Class	1
Connector Type	###

Optyka

TYPE OF CONTROL	ON/OFF
LED LIFETIME Ta25 [h]	64000

Dane techniczne

Light Distribution DIR/IND	DIR
LED Color Temperature CCT [K]	####
Color Rendering Index [CRI]	##
LED LIFETIME Ta25 [h]	64000
TYPE OF CONTROL	ON/OFF
Body Color	GREY, BLACK, WHITE
Ingress Protection [IP]	20

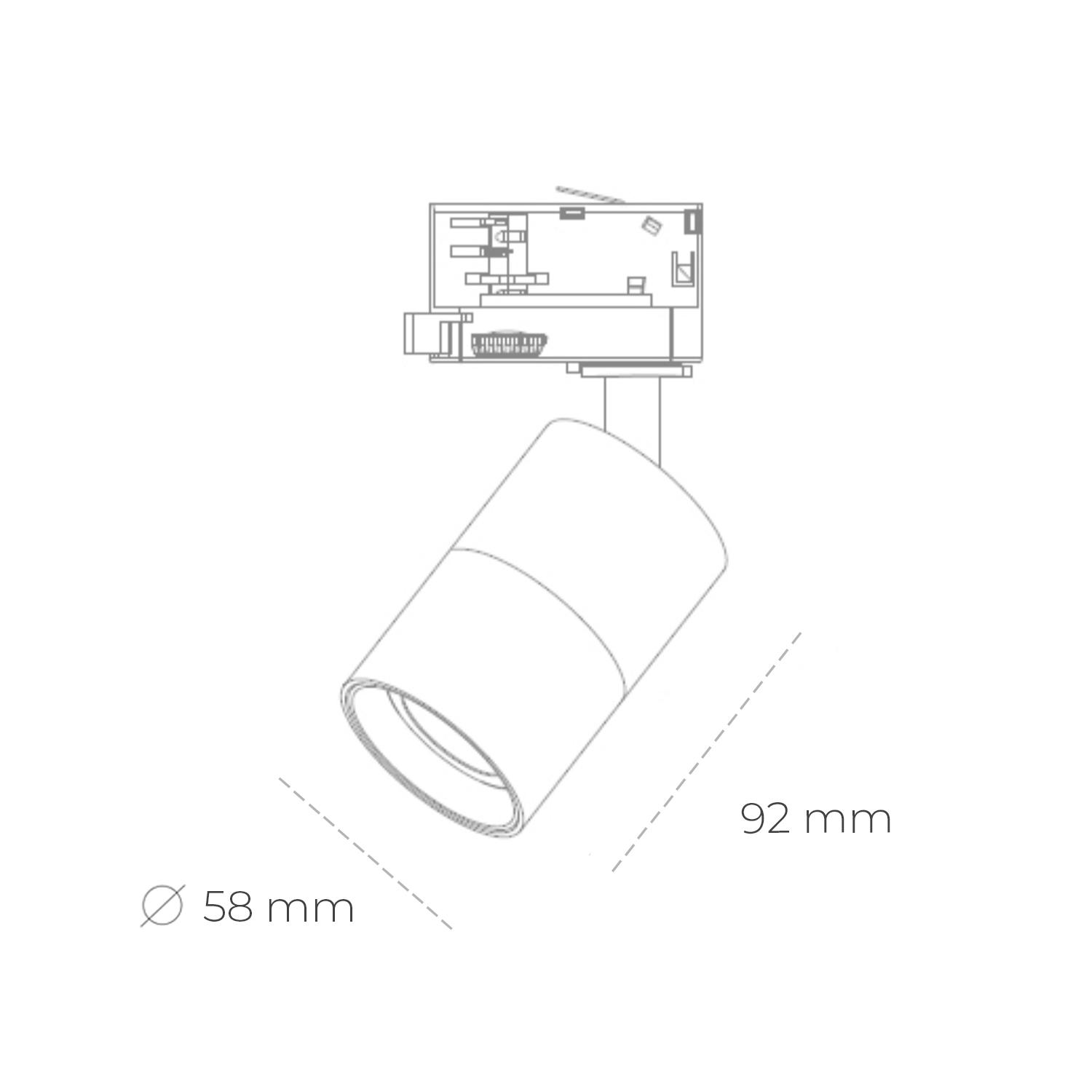

Diameter ø [mm]	58
Weight [KG]	0.28 kg

Opis:

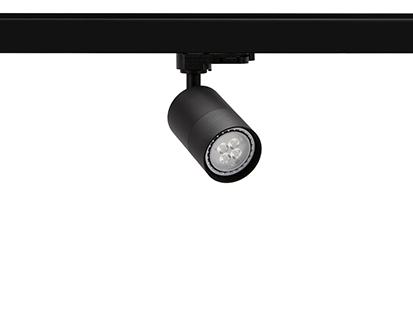

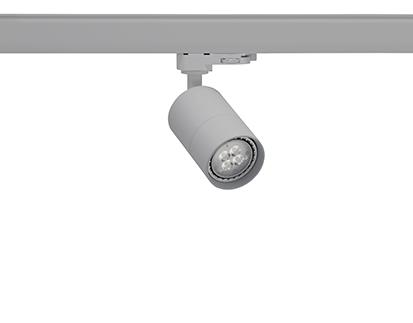

Track mounted LED spotlight. Aluminium housing. Ceiling base installation possible. Available in white, black and grey. Any RAL palette colour available on enquiry. Maximum GU10 power 9W

RAL colours on inquiry,

Do pobrania:

Karta katalogowa:

Ilustracje techniczne:

Instrukcja montażu:

Certyfikaty:

Dane fotometryczne:

GLIDER GU10

Dane elektryczne

IEC Protection Class	1
Connector Type	###

Optyka

TYPE OF CONTROL	ON/OFF
LED LIFETIME Ta25 [h]	64000

Dane techniczne

Light Distribution DIR/IND	DIR
LED Color Temperature CCT [K]	####
Color Rendering Index [CRI]	##
LED LIFETIME Ta25 [h]	64000
TYPE OF CONTROL	ON/OFF
Body Color	GREY, BLACK, WHITE
Ingress Protection [IP]	20
Diameter ø [mm]	58
Weight [KG]	0.28 kg

Obudowa

Body Color	GREY, BLACK, WHITE

Dane techniczne oświetlenia

LED Color Temperature CCT [K]	####
Color Rendering Index [CRI]	##
Light Distribution DIR/IND	DIR

Dane techniczne

TA [°C]	0-30
Ingress Protection [IP]	20

Wymiary

Diameter ø [mm]	58
Weight [KG]	0.28 kg

Warianty

Item	Code	Lenght	Width	Height	Diameter	W	Lumen Output lm	Efficacy lm/W	Beam Angle	CRI	Color K	CCT [K] type	Type of Control	IP	Color
GLIDER GU10 lm W ### 58 GR IP20 ON/OFF	MI103413267	58	58	92	58					##	####		ON/OFF	20	GREY
GLIDER GU10 lm W ### 58 BL IP20 ON/OFF	MI106323105	58	58	92	58					##	####		ON/OFF	20	BLACK
GLIDER GU10 lm W ### 58 WH IP20 ON/OFF	MI100789611	58	58	92	58					##	####		ON/OFF	20	WHITE
