MAGNA WINGS
MAGNA WINGS

Dane elektryczne

Total Consumption [W]	10, 11, 13, 14, 19, 20, 21, 23, 25, 27, 31, 34, 35, 36, 37
IEC Protection Class	2
Connector Type	###

Optyka

TYPE OF CONTROL	ON/OFF
LED LIFETIME Ta25 [h]	64000

Dane techniczne

Total Consumption [W]	10, 11, 13, 14, 19, 20, 21, 23, 25, 27, 31, 34, 35, 36, 37
Lumen Output [LM]	716, 818, 888, 915, 916, 921, 956, 966, 1002, 1054, 1074, 1077, 1088, 1112, 1129, 1135, 1157, 1197, 1236, 1244, 1256, 1260, 1266, 1290, 1298, 1300, 1339, 1352, 1392, 1456, 1476, 1508, 1509, 1524, 1558, 1580, 1589, 1610, 1621, 1651, 1704, 1727, 1739, 1744, 1759, 1760, 1777, 1804, 1808, 1844, 1872, 1879, 1916, 1921, 1932, 1955, 1996, 2015, 2028, 2040, 2059, 2070, 2080, 2126, 2130, 2133, 2155, 2156, 2177, 2213, 2220, 2226, 2230, 2237, 2245, 2246, 2271, 2304, 2310, 2316, 2319, 2329, 2368, 2370, 2378, 2392, 2395, 2397, 2418, 2432, 2433, 2443, 2448, 2488, 2497, 2512, 2514, 2525, 2535, 2547, 2548, 2551, 2581, 2586, 2596, 2604, 2612, 2653, 2672, 2694, 2700, 2706, 2718, 2722, 2725, 2780, 2787, 2789, 2793, 2801, 2810, 2830, 2831, 2844, 2894, 2896, 2899, 2907, 2927, 2928, 2950, 2952, 2988, 3011, 3017, 3021, 3029, 3034, 3048, 3061, 3092, 3116, 3123, 3128, 3132, 3147, 3179, 3200, 3230, 3242, 3258, 3267, 3272, 3277, 3320, 3344, 3377, 3439, 3448, 3480, 3484, 3499, 3502, 3504, 3508, 3562, 3633, 3636, 3672, 3706, 3778, 3811, 3880, 3920, 3964, 3971, 4008, 4088, 4095, 4137, 4169, 4202, 4230, 4315, 4401, 4414, 4418, 4425, 4640, 4648
Efficacy lm/W	64, 70, 72, 73, 77, 78, 80, 81, 82, 83, 84, 85, 86, 87, 88, 89, 90, 91, 92, 93, 94, 95, 96, 97, 98, 99, 100, 101, 102, 103, 104, 105, 106, 107, 108, 109, 110, 111, 112, 113, 114, 115, 116, 117, 118, 119, 120, 121, 122, 123, 124, 125, 126, 127, 128, 129, 130, 131, 132, 133, 134
Beam Angle [°]	90°x50°
Light Distribution DIR/IND	DIR
LED Color Temperature CCT [K]	2000, 2500, 2700, 3000, 3500, 4000, 4200, 5000, 5700
Color Rendering Index [CRI]	80, 90
LED LIFETIME Ta25 [h]	64000
TYPE OF CONTROL	ON/OFF
Body Color	GREY, BLACK, WHITE
Ingress Protection [IP]	20

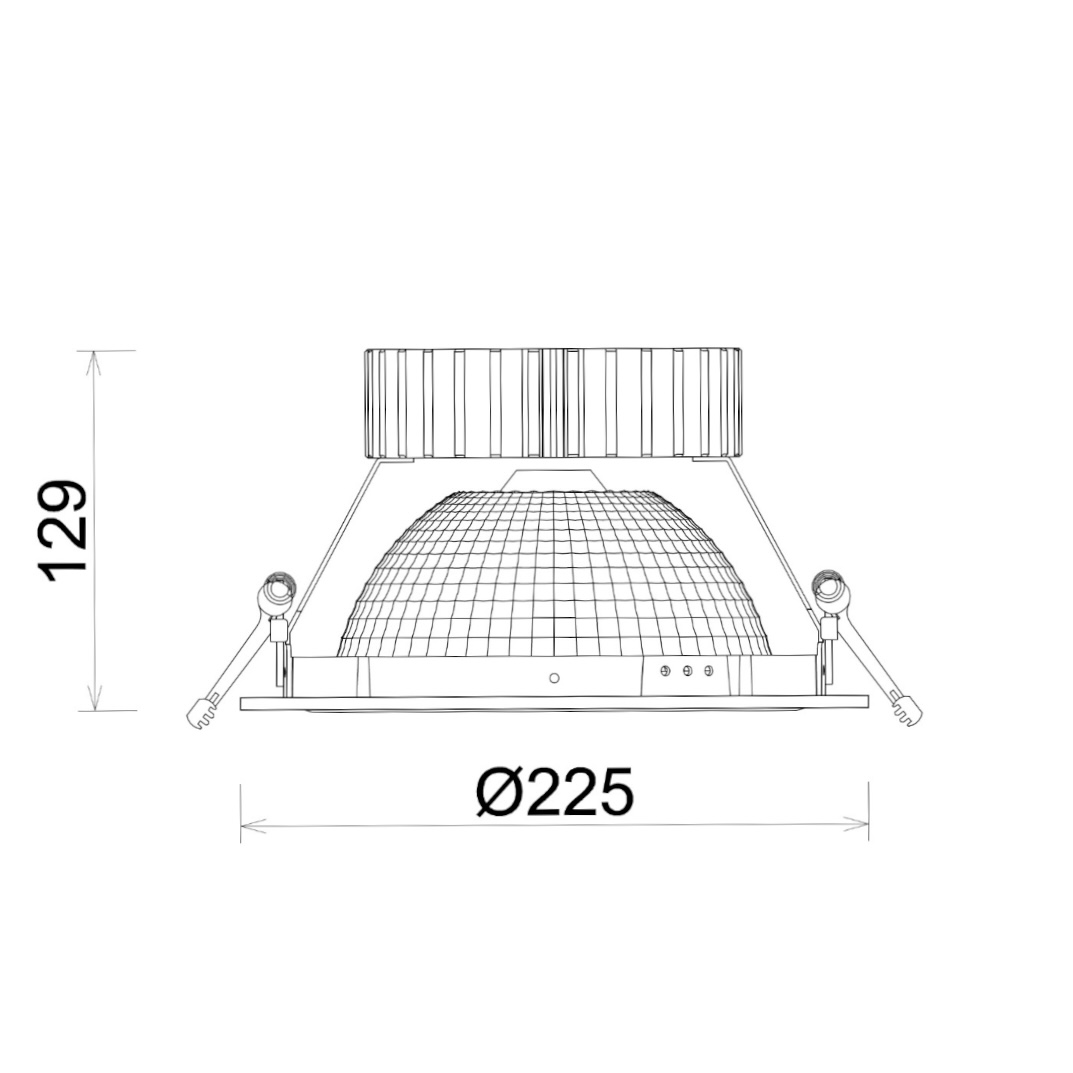

Diameter ø [mm]	225
Weight [KG]	1.23 kg

Opis:

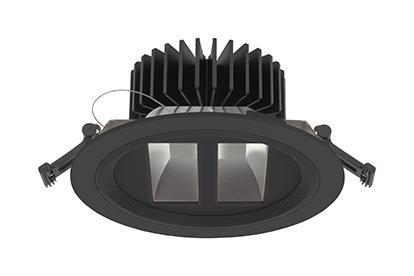

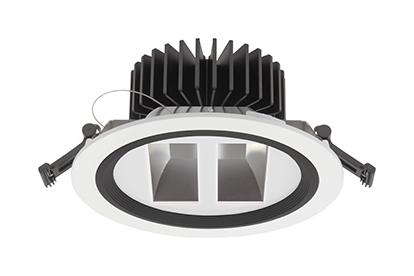

LED downlight for drop ceiling installation. Aluminium housing. Glass cover included. Available in white, black and grey. Any RAL palette colour available on enquiry. Special double asymmetric optics. Maximum power is 37W.

RAL colours on enquiry, Casambi on enquiry, DALI on enquiry, Phase-cut dimming on enquiry.

Do pobrania:

Karta katalogowa:

Ilustracje techniczne:

Instrukcja montażu:

Certyfikaty:

Dane fotometryczne:

Dane elektryczne

Total Consumption [W]	10, 11, 13, 14, 19, 20, 21, 23, 25, 27, 31, 34, 35, 36, 37
IEC Protection Class	2
Connector Type	###

Optyka

TYPE OF CONTROL	ON/OFF
LED LIFETIME Ta25 [h]	64000

Dane techniczne

Total Consumption [W]	10, 11, 13, 14, 19, 20, 21, 23, 25, 27, 31, 34, 35, 36, 37
Lumen Output [LM]	716, 818, 888, 915, 916, 921, 956, 966, 1002, 1054, 1074, 1077, 1088, 1112, 1129, 1135, 1157, 1197, 1236, 1244, 1256, 1260, 1266, 1290, 1298, 1300, 1339, 1352, 1392, 1456, 1476, 1508, 1509, 1524, 1558, 1580, 1589, 1610, 1621, 1651, 1704, 1727, 1739, 1744, 1759, 1760, 1777, 1804, 1808, 1844, 1872, 1879, 1916, 1921, 1932, 1955, 1996, 2015, 2028, 2040, 2059, 2070, 2080, 2126, 2130, 2133, 2155, 2156, 2177, 2213, 2220, 2226, 2230, 2237, 2245, 2246, 2271, 2304, 2310, 2316, 2319, 2329, 2368, 2370, 2378, 2392, 2395, 2397, 2418, 2432, 2433, 2443, 2448, 2488, 2497, 2512, 2514, 2525, 2535, 2547, 2548, 2551, 2581, 2586, 2596, 2604, 2612, 2653, 2672, 2694, 2700, 2706, 2718, 2722, 2725, 2780, 2787, 2789, 2793, 2801, 2810, 2830, 2831, 2844, 2894, 2896, 2899, 2907, 2927, 2928, 2950, 2952, 2988, 3011, 3017, 3021, 3029, 3034, 3048, 3061, 3092, 3116, 3123, 3128, 3132, 3147, 3179, 3200, 3230, 3242, 3258, 3267, 3272, 3277, 3320, 3344, 3377, 3439, 3448, 3480, 3484, 3499, 3502, 3504, 3508, 3562, 3633, 3636, 3672, 3706, 3778, 3811, 3880, 3920, 3964, 3971, 4008, 4088, 4095, 4137, 4169, 4202, 4230, 4315, 4401, 4414, 4418, 4425, 4640, 4648
Efficacy lm/W	64, 70, 72, 73, 77, 78, 80, 81, 82, 83, 84, 85, 86, 87, 88, 89, 90, 91, 92, 93, 94, 95, 96, 97, 98, 99, 100, 101, 102, 103, 104, 105, 106, 107, 108, 109, 110, 111, 112, 113, 114, 115, 116, 117, 118, 119, 120, 121, 122, 123, 124, 125, 126, 127, 128, 129, 130, 131, 132, 133, 134
Beam Angle [°]	90°x50°
Light Distribution DIR/IND	DIR
LED Color Temperature CCT [K]	2000, 2500, 2700, 3000, 3500, 4000, 4200, 5000, 5700
Color Rendering Index [CRI]	80, 90
LED LIFETIME Ta25 [h]	64000
TYPE OF CONTROL	ON/OFF
Body Color	GREY, BLACK, WHITE
Ingress Protection [IP]	20
Diameter ø [mm]	225
Weight [KG]	1.23 kg

Obudowa

Body Color	GREY, BLACK, WHITE

Dane techniczne oświetlenia

Total Consumption [W]	10, 11, 13, 14, 19, 20, 21, 23, 25, 27, 31, 34, 35, 36, 37
Lumen Output [LM]	716, 818, 888, 915, 916, 921, 956, 966, 1002, 1054, 1074, 1077, 1088, 1112, 1129, 1135, 1157, 1197, 1236, 1244, 1256, 1260, 1266, 1290, 1298, 1300, 1339, 1352, 1392, 1456, 1476, 1508, 1509, 1524, 1558, 1580, 1589, 1610, 1621, 1651, 1704, 1727, 1739, 1744, 1759, 1760, 1777, 1804, 1808, 1844, 1872, 1879, 1916, 1921, 1932, 1955, 1996, 2015, 2028, 2040, 2059, 2070, 2080, 2126, 2130, 2133, 2155, 2156, 2177, 2213, 2220, 2226, 2230, 2237, 2245, 2246, 2271, 2304, 2310, 2316, 2319, 2329, 2368, 2370, 2378, 2392, 2395, 2397, 2418, 2432, 2433, 2443, 2448, 2488, 2497, 2512, 2514, 2525, 2535, 2547, 2548, 2551, 2581, 2586, 2596, 2604, 2612, 2653, 2672, 2694, 2700, 2706, 2718, 2722, 2725, 2780, 2787, 2789, 2793, 2801, 2810, 2830, 2831, 2844, 2894, 2896, 2899, 2907, 2927, 2928, 2950, 2952, 2988, 3011, 3017, 3021, 3029, 3034, 3048, 3061, 3092, 3116, 3123, 3128, 3132, 3147, 3179, 3200, 3230, 3242, 3258, 3267, 3272, 3277, 3320, 3344, 3377, 3439, 3448, 3480, 3484, 3499, 3502, 3504, 3508, 3562, 3633, 3636, 3672, 3706, 3778, 3811, 3880, 3920, 3964, 3971, 4008, 4088, 4095, 4137, 4169, 4202, 4230, 4315, 4401, 4414, 4418, 4425, 4640, 4648
Efficacy lm/W	64, 70, 72, 73, 77, 78, 80, 81, 82, 83, 84, 85, 86, 87, 88, 89, 90, 91, 92, 93, 94, 95, 96, 97, 98, 99, 100, 101, 102, 103, 104, 105, 106, 107, 108, 109, 110, 111, 112, 113, 114, 115, 116, 117, 118, 119, 120, 121, 122, 123, 124, 125, 126, 127, 128, 129, 130, 131, 132, 133, 134
LED Color Temperature CCT [K]	2000, 2500, 2700, 3000, 3500, 4000, 4200, 5000, 5700
Color Rendering Index [CRI]	80, 90
Beam Angle [°]	90°x50°
Light Distribution DIR/IND	DIR

Dane techniczne

TA [°C]	0-30
Ingress Protection [IP]	20

Wymiary

Diameter ø [mm]	225
Weight [KG]	1.23 kg

Warianty

Item	Code	Lenght	Width	Height	Diameter	W	Lumen Output lm	Efficacy lm/W	Beam Angle	CRI	Color K	Type of Control	IP	Color
MAGNA WINGS 1077lm 10W 827 225 90°x50° GR IP20 ON/OFF	MI101835910	230	230	160	225	10	1077	108	90°X50°	80	2700	ON/OFF	20	GREY
MAGNA WINGS 1508lm 13W 827 225 90°x50° GR IP20 ON/OFF	MI108897028	230	230	160	225	13	1508	116	90°X50°	80	2700	ON/OFF	20	GREY
MAGNA WINGS 2155lm 19W 827 225 90°x50° GR IP20 ON/OFF	MI103032898	230	230	160	225	19	2155	113	90°X50°	80	2700	ON/OFF	20	GREY
MAGNA WINGS 2370lm 21W 827 225 90°x50° GR IP20 ON/OFF	MI109879155	230	230	160	225	21	2370	113	90°X50°	80	2700	ON/OFF	20	GREY
MAGNA WINGS 2586lm 23W 827 225 90°x50° GR IP20 ON/OFF	MI100795096	230	230	160	225	23	2586	112	90°X50°	80	2700	ON/OFF	20	GREY
MAGNA WINGS 2801lm 25W 827 225 90°x50° GR IP20 ON/OFF	MI101685134	230	230	160	225	25	2801	112	90°X50°	80	2700	ON/OFF	20	GREY
MAGNA WINGS 3017lm 27W 827 225 90°x50° GR IP20 ON/OFF	MI101102659	230	230	160	225	27	3017	112	90°X50°	80	2700	ON/OFF	20	GREY
MAGNA WINGS 3448lm 31W 827 225 90°x50° GR IP20 ON/OFF	MI101651532	230	230	160	225	31	3448	111	90°X50°	80	2700	ON/OFF	20	GREY
MAGNA WINGS 3880lm 35W 827 225 90°x50° GR IP20 ON/OFF	MI103141487	230	230	160	225	35	3880	111	90°X50°	80	2700	ON/OFF	20	GREY
MAGNA WINGS 4095lm 37W 827 225 90°x50° GR IP20 ON/OFF	MI104996667	230	230	160	225	37	4095	111	90°X50°	80	2700	ON/OFF	20	GREY
MAGNA WINGS 888lm 10W 927 225 90°x50° GR IP20 ON/OFF	MI104549158	230	230	160	225	10	888	89	90°X50°	90	2700	ON/OFF	20	GREY
MAGNA WINGS 1244lm 14W 827 225 90°x50° GR IP20 ON/OFF	MI103563824	230	230	160	225	14	1244	89	90°X50°	80	2700	ON/OFF	20	GREY
MAGNA WINGS 1777lm 19W 827 225 90°x50° GR IP20 ON/OFF	MI109468623	230	230	160	225	19	1777	94	90°X50°	80	2700	ON/OFF	20	GREY
MAGNA WINGS 1955lm 21W 827 225 90°x50° GR IP20 ON/OFF	MI101433140	230	230	160	225	21	1955	93	90°X50°	80	2700	ON/OFF	20	GREY
MAGNA WINGS 2133lm 23W 827 225 90°x50° GR IP20 ON/OFF	MI106148487	230	230	160	225	23	2133	93	90°X50°	80	2700	ON/OFF	20	GREY
MAGNA WINGS 2310lm 25W 827 225 90°x50° GR IP20 ON/OFF	MI104518002	230	230	160	225	25	2310	92	90°X50°	80	2700	ON/OFF	20	GREY
MAGNA WINGS 2488lm 27W 827 225 90°x50° GR IP20 ON/OFF	MI106863258	230	230	160	225	27	2488	92	90°X50°	80	2700	ON/OFF	20	GREY
MAGNA WINGS 2844lm 31W 827 225 90°x50° GR IP20 ON/OFF	MI100001046	230	230	160	225	31	2844	92	90°X50°	80	2700	ON/OFF	20	GREY
MAGNA WINGS 3200lm 35W 827 225 90°x50° GR IP20 ON/OFF	MI106468030	230	230	160	225	35	3200	91	90°X50°	80	2700	ON/OFF	20	GREY
MAGNA WINGS 3377lm 37W 827 225 90°x50° GR IP20 ON/OFF	MI106893132	230	230	160	225	37	3377	91	90°X50°	80	2700	ON/OFF	20	GREY
MAGNA WINGS 1088lm 10W 830 225 90°x50° GR IP20 ON/OFF	MI103722225	230	230	160	225	10	1088	109	90°X50°	80	3000	ON/OFF	20	GREY
MAGNA WINGS 1524lm 14W 830 225 90°x50° GR IP20 ON/OFF	MI105189487	230	230	160	225	14	1524	109	90°X50°	80	3000	ON/OFF	20	GREY
MAGNA WINGS 2177lm 19W 830 225 90°x50° GR IP20 ON/OFF	MI100218341	230	230	160	225	19	2177	115	90°X50°	80	3000	ON/OFF	20	GREY
MAGNA WINGS 2395lm 21W 830 225 90°x50° GR IP20 ON/OFF	MI104055376	230	230	160	225	21	2395	114	90°X50°	80	3000	ON/OFF	20	GREY
MAGNA WINGS 2612lm 23W 830 225 90°x50° GR IP20 ON/OFF	MI105528433	230	230	160	225	23	2612	114	90°X50°	80	3000	ON/OFF	20	GREY

Pokaż na stronę: 25 / 50 / 75 / 100 | Strona 1 z 24
