NODUS STANDARD COWL 220-240V AC 50/60Hz
NODUS STANDARD COWL 220-240V AC 50/60Hz

Dane ogólne

Application	FLOODLIGHTS
Key Advantages	Variety of light distribution beam angles, power options W, shape designs and dimming options.
Product Shape	Round
Type	Illumination
Mounting	BRACKET

Dane elektryczne

Main Feed AC [V]	220-240VAC
Main Feed Frequency [Hz]	50-60
Total Consumption [W]	5
IEC Protection Class	III
Connector Type	0.5m
Wiring	H07RN-F 3G1

Optyka

Diffuser Material	Tempered glass
CONTROL SYSTEM	ON-OFF
LED LIFETIME Ta25 [h]	≥ 60 000h

Dane techniczne

Total Consumption [W]	5
Lumen Output [LM]	500 – 620
Efficacy lm/W	100 – 124
Diffuser Material	Tempered glass
Body Material	Aluminium
Beam Angle [°]	25, 45
Light Distribution DIR/IND	DIR
LED Color Temperature CCT [K]	2700/3000/4000/5000
Color Rendering Index [CRI]	80
MacAdam step	<3
LED LIFETIME Ta25 [h]	≥ 60 000h
Body Color	BLACK
Ingress Protection [IP]	67
Mechanical Protection [IK]	10
Main Feed AC [V]	220-240VAC

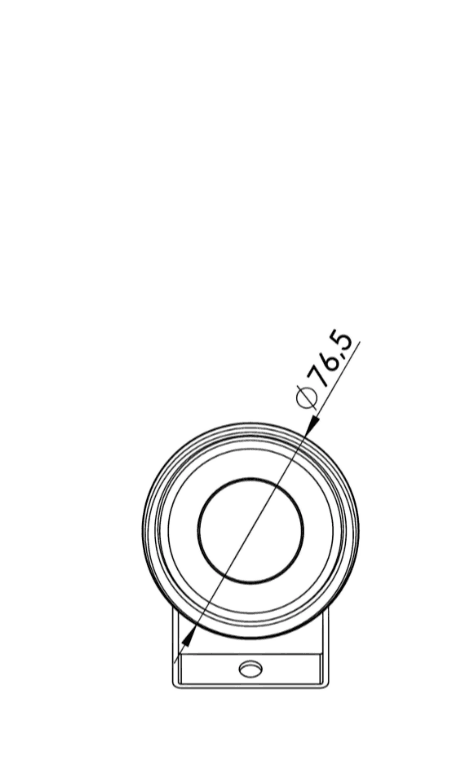

Diameter ø [mm]	76.5

Opis:

The Nodus Standard is made of aluminum. The projector comes in a version on a mounting plate or on a spike (for ground mounting). Power of 5W. Nodus Standard can be used to illuminate many places and objects, such as parks, gardens, exterior walls, monuments, premises..

Key Advantages:

Variety of light distribution beam angles, power options W, shape designs and dimming options.

Do pobrania:

Karta katalogowa:

Ilustracje techniczne:

Instrukcja montażu:

Certyfikaty:

Dane fotometryczne:

Dane ogólne

Application	FLOODLIGHTS
Key Advantages	Variety of light distribution beam angles, power options W, shape designs and dimming options.
Product Shape	Round
Type	Illumination
Mounting	BRACKET

Dane elektryczne

Main Feed AC [V]	220-240VAC
Main Feed Frequency [Hz]	50-60
Total Consumption [W]	5
IEC Protection Class	III
Connector Type	0.5m
Wiring	H07RN-F 3G1

Optyka

Diffuser Material	Tempered glass
CONTROL SYSTEM	ON-OFF
LED LIFETIME Ta25 [h]	≥ 60 000h

Dane techniczne

Total Consumption [W]	5
Lumen Output [LM]	500 – 620
Efficacy lm/W	100 – 124
Diffuser Material	Tempered glass
Body Material	Aluminium
Beam Angle [°]	25, 45
Light Distribution DIR/IND	DIR
LED Color Temperature CCT [K]	2700/3000/4000/5000
Color Rendering Index [CRI]	80
MacAdam step	<3
LED LIFETIME Ta25 [h]	≥ 60 000h
Body Color	BLACK
Ingress Protection [IP]	67
Mechanical Protection [IK]	10
Main Feed AC [V]	220-240VAC
Diameter ø [mm]	76.5

Obudowa

Body Material	Aluminium
Body Color	BLACK

Dane techniczne oświetlenia

Light Source	LED
Total Consumption [W]	5
Lumen Output [LM]	500 – 620
Efficacy lm/W	100 – 124
LED Color Temperature CCT [K]	2700/3000/4000/5000
Color Rendering Index [CRI]	80
MacAdam step	<3
Beam Angle [°]	25, 45
Light Distribution DIR/IND	DIR

Dane techniczne

TA [°C]	-20 to +55
Ingress Protection [IP]	67
Mechanical Protection [IK]	10
Corrosion Class	C3, C4

Wymiary

Diameter ø [mm]	76.5

Warianty

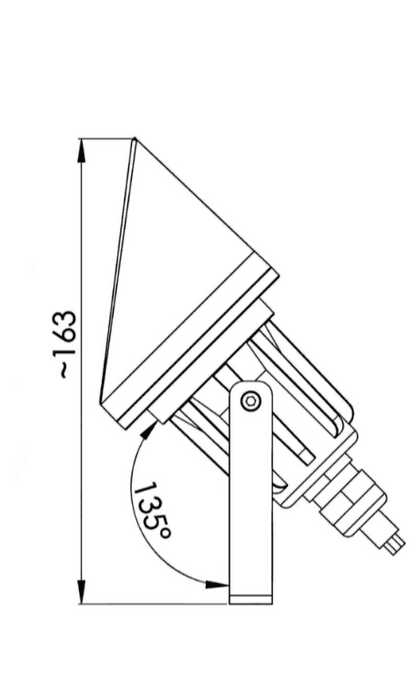

Item	Code	Height	Diameter	W	Lumen Output lm	Efficacy lm/W	Diffuser	Beam Angle	CRI	Color K	IP	Color
GLASS 500lm 5W 827 76,5 BL IP67	MI8207245	163	76,5	5	500	100	GLASS	10	80	2700	67	BLACK
GLASS 500lm 5W 827 76,5 BL IP67	MI9638535	163	76,5	5	500	100	GLASS	20	80	2700	67	BLACK
GLASS 540lm 5W 830 76,5 BL IP67	MI6745786	163	76,5	5	540	108	GLASS	10	80	3000	67	BLACK
GLASS 540lm 5W 830 76,5 BL IP67	MI4596328	163	76,5	5	540	108	GLASS	20	80	3000	67	BLACK
GLASS 580lm 5W 840 76,5 BL IP67	MI2298194	163	76,5	5	580	116	GLASS	10	80	4000	67	BLACK
GLASS 580lm 5W 840 76,5 BL IP67	MI3716920	163	76,5	5	580	115	GLASS	20	80	4000	67	BLACK
GLASS 620lm 5W 850 76,5 BL IP67	MI319322	163	76,5	5	620	124	GLASS	10	80	5000	67	BLACK
GLASS 620lm 5W 850 76,5 BL IP67	MI8999619	163	76,5	5	620	124	GLASS	20	80	5000	67	BLACK
