ONYX R135 OPAL 1150lm 15W 930 WH IP44 ON/OFF
Item No. MI104860279
ONYX 135

ONYX R135 OPAL 1150lm 15W 930 WH IP44 ON/OFF

MI104860279

Dane ogólne
Key Advantages

Various optic beam angle versions designed to suit any applications and requirements.

Product ShapeRound
TypeDownlight
MountingR
Mounting Opening120
Dane elektryczne
Main Feed AC [V]220-240
Main Feed Frequency [Hz]50-60
Total Consumption [W]15
IEC Protection ClassI
Optyka
DiffuserOPAL
Type of ControlON/OFF
LED LIFETIME Ta25 [h]L80B10 60.000h
Dane techniczne
Total Consumption [W]15
Lumen Output [LM]1150
Efficacy [lm/W]77
DiffuserOPAL
Beam Angle [°]74°
Light distributionDIR
CCT [K]3000
CRI90
MacAdam step3
LED LIFETIME Ta25 [h]L80B10 60.000h
Type of ControlON/OFF
Housing colorWHITE
IP44
Mechanical Protection [IK]01
Main Feed AC [V]220-240
Opis:

A small, configurable spotlight – recessed downlight for interior lighting. A wide range of technical parameter and luminaire appearance variants for versatile applications. COB technology and a high-performance, metalized, facetted plastic reflector guarantee the optimum construction of the optical system and a high efficiency.

Key Advantages:

Various optic beam angle versions designed to suit any applications and requirements.

Do pobrania:
Karta katalogowa:
1
Instrukcja montażu:
1
Certyfikaty:
1

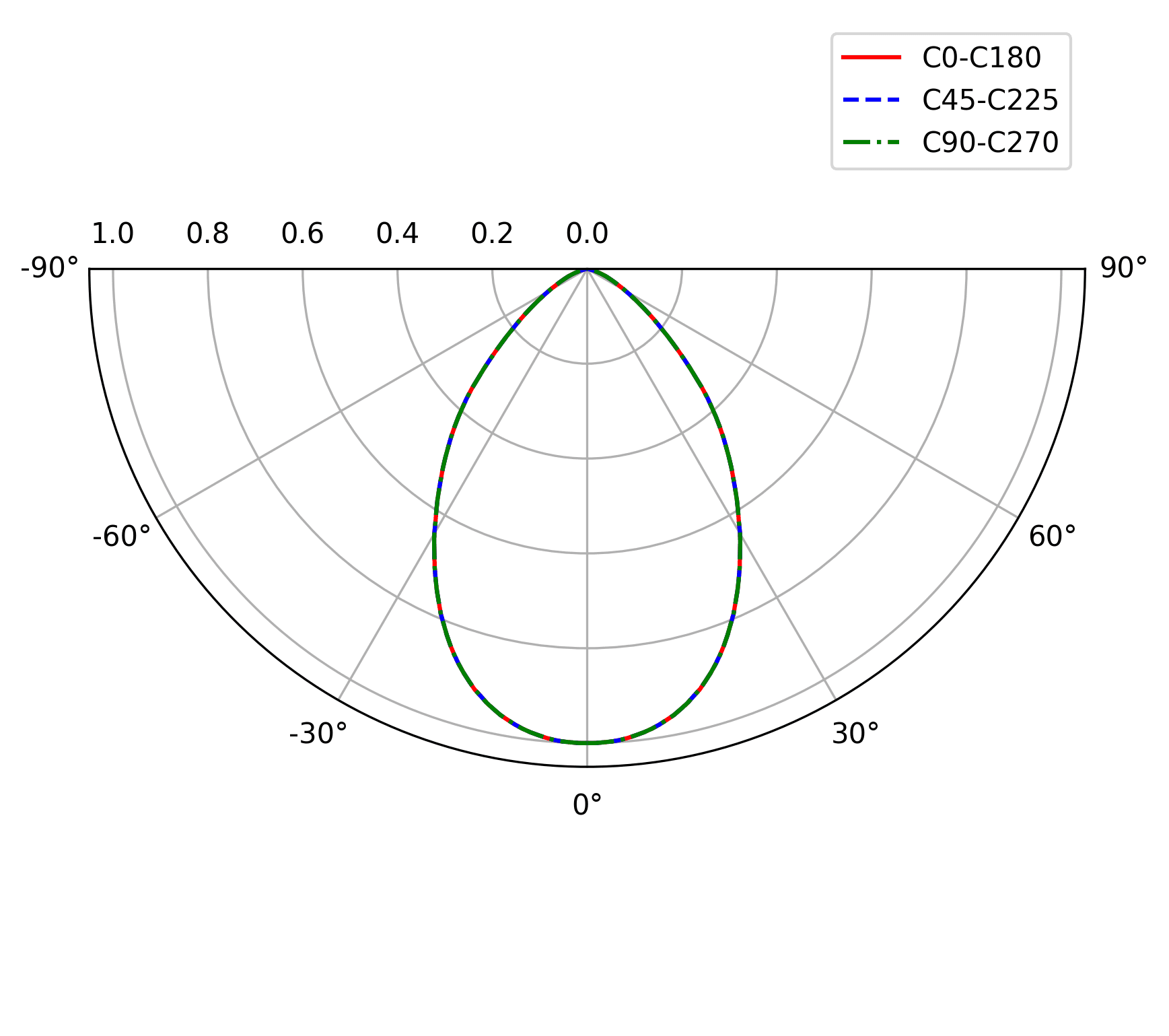

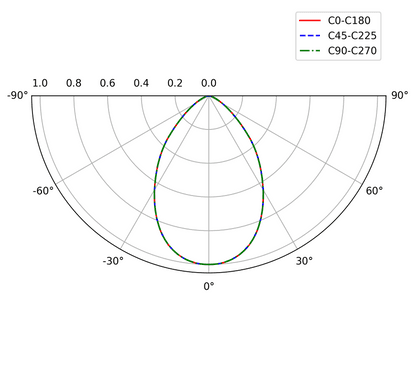

Dane fotometryczne:
1
/soft4net/img/project/icons/DO WSZYSTKICH PRODUKTOW/CE.svg
/soft4net/img/project/icons/AD - IP/44.svg
/soft4net/img/project/icons/J - MOUNTING/R.svg
/soft4net/img/project/icons/W - HOUSING COLOR/WHITE.svg
/soft4net/img/project/icons/Y + Z - CCT K + CRI/3000_90.svg
ONYX 135
Dane ogólne
Key Advantages

Various optic beam angle versions designed to suit any applications and requirements.

Product ShapeRound
TypeDownlight
MountingR
Mounting Opening120
Dane elektryczne
Main Feed AC [V]220-240
Main Feed Frequency [Hz]50-60
Total Consumption [W]15
IEC Protection ClassI
Optyka
DiffuserOPAL
Type of ControlON/OFF
LED LIFETIME Ta25 [h]L80B10 60.000h
Dane techniczne
Total Consumption [W]15
Lumen Output [LM]1150
Efficacy [lm/W]77
DiffuserOPAL
Beam Angle [°]74°
Light distributionDIR
CCT [K]3000
CRI90
MacAdam step3
LED LIFETIME Ta25 [h]L80B10 60.000h
Type of ControlON/OFF
Housing colorWHITE
IP44
Mechanical Protection [IK]01
Main Feed AC [V]220-240
Obudowa
Housing colorWHITE
FinishMatt, Gloss
Dane techniczne oświetlenia
Light SourceLED
Total Consumption [W]15
Lumen Output [LM]1150
Efficacy [lm/W]77
CCT [K]3000
CRI90
MacAdam step3
Beam Angle [°]74°
Light distributionDIR
Dane techniczne
IP44
Mechanical Protection [IK]01
Generating PDF...

Ilustracje techniczne

ONYX 135
