ONYX Q110 OPAL 620lm 11W 840 WH IP44 DALI
Item No. MI103351075
ONYX Q110

ONYX Q110 OPAL 620lm 11W 840 WH IP44 DALI

MI103351075

Dane ogólne
Key Advantages

Various optic beam angle versions designed to suit any applications and requirements.

Product ShapeSquare
TypeDownlight
MountingR
Mounting Opening100x100
Dane elektryczne
Main Feed AC [V]220-240
Main Feed Frequency [Hz]50-60
Total Consumption [W]11
IEC Protection ClassI
Optyka
DiffuserOPAL
Type of ControlDALI
LED LIFETIME Ta25 [h]L70B50 60.000h
Dane techniczne
Total Consumption [W]11
Lumen Output [LM]620
Efficacy [lm/W]56
DiffuserOPAL
Beam Angle [°]99°
Light distributionDIR
CCT [K]4000
CRI80
MacAdam step3
LED LIFETIME Ta25 [h]L70B50 60.000h
Type of ControlDALI
Housing colorWHITE
IP44
Mechanical Protection [IK]01
Main Feed AC [V]220-240
Opis:

A small, configurable spotlight – recessed downlight for interior lighting. A wide range of technical parameter and luminaire appearance variants for versatile applications. COB technology and a high-performance, metalized, facetted plastic reflector guarantee the optimum construction of the optical system and a high efficiency.

Key Advantages:

Various optic beam angle versions designed to suit any applications and requirements.

Do pobrania:
Karta katalogowa:
1
Instrukcja montażu:
1
Certyfikaty:
1

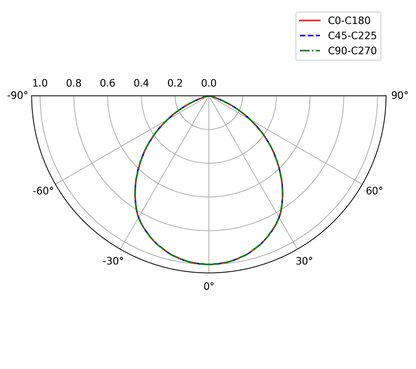

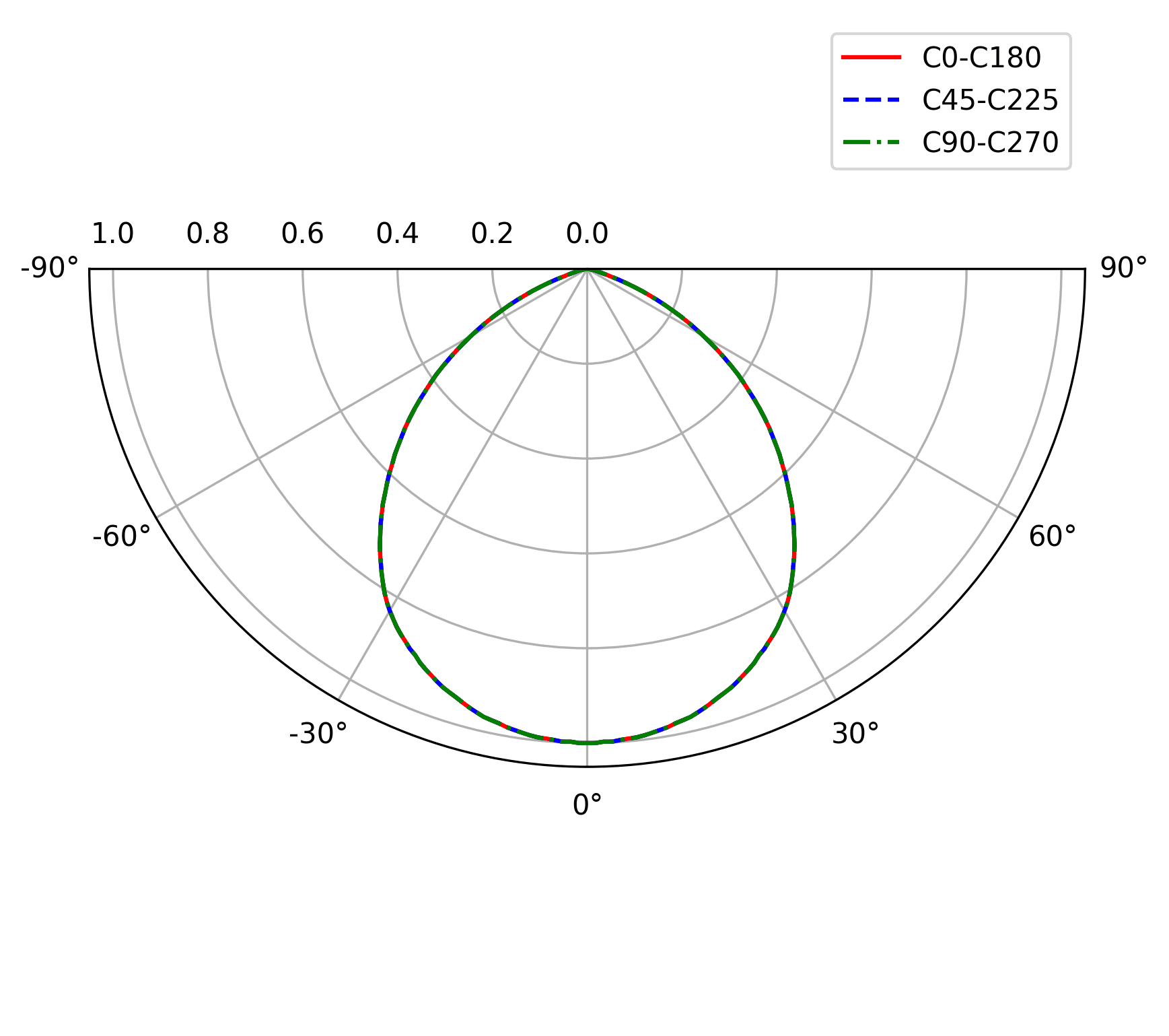

Dane fotometryczne:
1
/soft4net/img/project/icons/DO WSZYSTKICH PRODUKTOW/CE.svg
/soft4net/img/project/icons/AB - TYPE OF CONTROL/DALI.svg
/soft4net/img/project/icons/AD - IP/44.svg
/soft4net/img/project/icons/J - MOUNTING/R.svg
/soft4net/img/project/icons/W - HOUSING COLOR/WHITE.svg
/soft4net/img/project/icons/Y + Z - CCT K + CRI/4000_80.svg
ONYX Q110
Dane ogólne
Key Advantages

Various optic beam angle versions designed to suit any applications and requirements.

Product ShapeSquare
TypeDownlight
MountingR
Mounting Opening100x100
Dane elektryczne
Main Feed AC [V]220-240
Main Feed Frequency [Hz]50-60
Total Consumption [W]11
IEC Protection ClassI
Optyka
DiffuserOPAL
Type of ControlDALI
LED LIFETIME Ta25 [h]L70B50 60.000h
Dane techniczne
Total Consumption [W]11
Lumen Output [LM]620
Efficacy [lm/W]56
DiffuserOPAL
Beam Angle [°]99°
Light distributionDIR
CCT [K]4000
CRI80
MacAdam step3
LED LIFETIME Ta25 [h]L70B50 60.000h
Type of ControlDALI
Housing colorWHITE
IP44
Mechanical Protection [IK]01
Main Feed AC [V]220-240
Obudowa
Housing colorWHITE
FinishMatt, Gloss
Dane techniczne oświetlenia
Light SourceLED
Total Consumption [W]11
Lumen Output [LM]620
Efficacy [lm/W]56
CCT [K]4000
CRI80
MacAdam step3
Beam Angle [°]99°
Light distributionDIR
Dane techniczne
IP44
Mechanical Protection [IK]01
Generating PDF...

Ilustracje techniczne

ONYX Q110
