STEIN 2
STEIN 2

Dane elektryczne

Total Consumption [W]	10, 11, 13, 14, 19, 20, 21, 23, 25, 27, 31, 34, 35, 36, 37
IEC Protection Class	2
Connector Type	###

Optyka

TYPE OF CONTROL	ON/OFF
LED LIFETIME Ta25 [h]	64000

Dane techniczne

Total Consumption [W]	10, 11, 13, 14, 19, 20, 21, 23, 25, 27, 31, 34, 35, 36, 37
Lumen Output [LM]	716, 818, 888, 915, 916, 921, 956, 966, 1002, 1054, 1074, 1077, 1088, 1112, 1129, 1135, 1157, 1197, 1236, 1244, 1256, 1260, 1266, 1290, 1298, 1300, 1339, 1352, 1392, 1456, 1476, 1508, 1509, 1524, 1558, 1580, 1589, 1610, 1621, 1651, 1704, 1727, 1739, 1744, 1759, 1760, 1777, 1804, 1808, 1844, 1872, 1879, 1916, 1921, 1932, 1955, 1996, 2015, 2028, 2040, 2059, 2070, 2080, 2126, 2130, 2133, 2155, 2156, 2177, 2213, 2220, 2226, 2230, 2237, 2245, 2246, 2271, 2304, 2310, 2316, 2319, 2329, 2368, 2370, 2378, 2392, 2395, 2397, 2418, 2432, 2433, 2443, 2448, 2488, 2497, 2512, 2514, 2525, 2535, 2547, 2548, 2551, 2581, 2586, 2596, 2604, 2612, 2653, 2672, 2694, 2700, 2706, 2718, 2722, 2725, 2780, 2787, 2789, 2793, 2801, 2810, 2830, 2831, 2844, 2894, 2896, 2899, 2907, 2927, 2928, 2950, 2952, 2988, 3011, 3017, 3021, 3029, 3034, 3048, 3061, 3092, 3116, 3123, 3128, 3132, 3147, 3179, 3200, 3230, 3242, 3258, 3267, 3272, 3277, 3320, 3344, 3377, 3439, 3448, 3480, 3484, 3499, 3502, 3504, 3508, 3562, 3633, 3636, 3672, 3706, 3778, 3811, 3880, 3920, 3964, 3971, 4008, 4088, 4095, 4137, 4169, 4202, 4230, 4315, 4401, 4414, 4418, 4425, 4640, 4648
Efficacy lm/W	64, 70, 72, 73, 77, 78, 80, 81, 82, 83, 84, 85, 86, 87, 88, 89, 90, 91, 92, 93, 94, 95, 96, 97, 98, 99, 100, 101, 102, 103, 104, 105, 106, 107, 108, 109, 110, 111, 112, 113, 114, 115, 116, 117, 118, 119, 120, 121, 122, 123, 124, 125, 126, 127, 128, 129, 130, 131, 132, 133, 134
Beam Angle [°]	90°x50°
Light Distribution DIR/IND	DIR
LED Color Temperature CCT [K]	2000, 2500, 2700, 3000, 3500, 4000, 4200, 5000, 5700
Color Rendering Index [CRI]	80, 90
LED LIFETIME Ta25 [h]	64000
TYPE OF CONTROL	ON/OFF
Body Color	GREY, BLACK, WHITE
Ingress Protection [IP]	20
Diameter ø [mm]	0
Weight [KG]	1.26 kg

Opis:

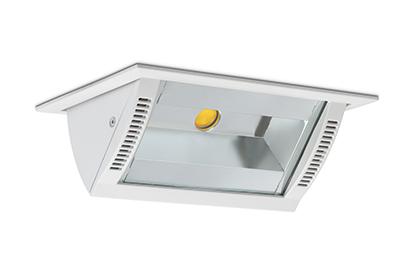

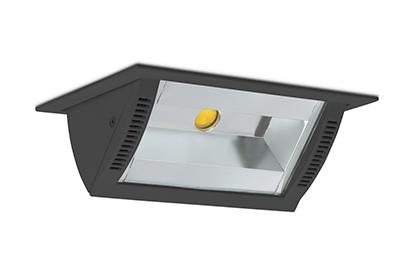

Wall-washer LED downlight for drop ceiling istallation. Aluminium housing. Glass cover included. Available in white, black and grey. Any RAL palette colour available on enquiry. Maximum power is 37W.

RAL colours on inquiry, Casambi on inquiry, DALI on inquiry, Phase-cut dimming on inquiry.

Do pobrania:

Karta katalogowa:

Ilustracje techniczne:

Instrukcja montażu:

Certyfikaty:

Dane fotometryczne:

Dane elektryczne

Total Consumption [W]	10, 11, 13, 14, 19, 20, 21, 23, 25, 27, 31, 34, 35, 36, 37
IEC Protection Class	2
Connector Type	###

Optyka

TYPE OF CONTROL	ON/OFF
LED LIFETIME Ta25 [h]	64000

Dane techniczne

Total Consumption [W]	10, 11, 13, 14, 19, 20, 21, 23, 25, 27, 31, 34, 35, 36, 37
Lumen Output [LM]	716, 818, 888, 915, 916, 921, 956, 966, 1002, 1054, 1074, 1077, 1088, 1112, 1129, 1135, 1157, 1197, 1236, 1244, 1256, 1260, 1266, 1290, 1298, 1300, 1339, 1352, 1392, 1456, 1476, 1508, 1509, 1524, 1558, 1580, 1589, 1610, 1621, 1651, 1704, 1727, 1739, 1744, 1759, 1760, 1777, 1804, 1808, 1844, 1872, 1879, 1916, 1921, 1932, 1955, 1996, 2015, 2028, 2040, 2059, 2070, 2080, 2126, 2130, 2133, 2155, 2156, 2177, 2213, 2220, 2226, 2230, 2237, 2245, 2246, 2271, 2304, 2310, 2316, 2319, 2329, 2368, 2370, 2378, 2392, 2395, 2397, 2418, 2432, 2433, 2443, 2448, 2488, 2497, 2512, 2514, 2525, 2535, 2547, 2548, 2551, 2581, 2586, 2596, 2604, 2612, 2653, 2672, 2694, 2700, 2706, 2718, 2722, 2725, 2780, 2787, 2789, 2793, 2801, 2810, 2830, 2831, 2844, 2894, 2896, 2899, 2907, 2927, 2928, 2950, 2952, 2988, 3011, 3017, 3021, 3029, 3034, 3048, 3061, 3092, 3116, 3123, 3128, 3132, 3147, 3179, 3200, 3230, 3242, 3258, 3267, 3272, 3277, 3320, 3344, 3377, 3439, 3448, 3480, 3484, 3499, 3502, 3504, 3508, 3562, 3633, 3636, 3672, 3706, 3778, 3811, 3880, 3920, 3964, 3971, 4008, 4088, 4095, 4137, 4169, 4202, 4230, 4315, 4401, 4414, 4418, 4425, 4640, 4648
Efficacy lm/W	64, 70, 72, 73, 77, 78, 80, 81, 82, 83, 84, 85, 86, 87, 88, 89, 90, 91, 92, 93, 94, 95, 96, 97, 98, 99, 100, 101, 102, 103, 104, 105, 106, 107, 108, 109, 110, 111, 112, 113, 114, 115, 116, 117, 118, 119, 120, 121, 122, 123, 124, 125, 126, 127, 128, 129, 130, 131, 132, 133, 134
Beam Angle [°]	90°x50°
Light Distribution DIR/IND	DIR
LED Color Temperature CCT [K]	2000, 2500, 2700, 3000, 3500, 4000, 4200, 5000, 5700
Color Rendering Index [CRI]	80, 90
LED LIFETIME Ta25 [h]	64000
TYPE OF CONTROL	ON/OFF
Body Color	GREY, BLACK, WHITE
Ingress Protection [IP]	20
Diameter ø [mm]	0
Weight [KG]	1.26 kg

Obudowa

Body Color	GREY, BLACK, WHITE

Dane techniczne oświetlenia

Total Consumption [W]	10, 11, 13, 14, 19, 20, 21, 23, 25, 27, 31, 34, 35, 36, 37
Lumen Output [LM]	716, 818, 888, 915, 916, 921, 956, 966, 1002, 1054, 1074, 1077, 1088, 1112, 1129, 1135, 1157, 1197, 1236, 1244, 1256, 1260, 1266, 1290, 1298, 1300, 1339, 1352, 1392, 1456, 1476, 1508, 1509, 1524, 1558, 1580, 1589, 1610, 1621, 1651, 1704, 1727, 1739, 1744, 1759, 1760, 1777, 1804, 1808, 1844, 1872, 1879, 1916, 1921, 1932, 1955, 1996, 2015, 2028, 2040, 2059, 2070, 2080, 2126, 2130, 2133, 2155, 2156, 2177, 2213, 2220, 2226, 2230, 2237, 2245, 2246, 2271, 2304, 2310, 2316, 2319, 2329, 2368, 2370, 2378, 2392, 2395, 2397, 2418, 2432, 2433, 2443, 2448, 2488, 2497, 2512, 2514, 2525, 2535, 2547, 2548, 2551, 2581, 2586, 2596, 2604, 2612, 2653, 2672, 2694, 2700, 2706, 2718, 2722, 2725, 2780, 2787, 2789, 2793, 2801, 2810, 2830, 2831, 2844, 2894, 2896, 2899, 2907, 2927, 2928, 2950, 2952, 2988, 3011, 3017, 3021, 3029, 3034, 3048, 3061, 3092, 3116, 3123, 3128, 3132, 3147, 3179, 3200, 3230, 3242, 3258, 3267, 3272, 3277, 3320, 3344, 3377, 3439, 3448, 3480, 3484, 3499, 3502, 3504, 3508, 3562, 3633, 3636, 3672, 3706, 3778, 3811, 3880, 3920, 3964, 3971, 4008, 4088, 4095, 4137, 4169, 4202, 4230, 4315, 4401, 4414, 4418, 4425, 4640, 4648
Efficacy lm/W	64, 70, 72, 73, 77, 78, 80, 81, 82, 83, 84, 85, 86, 87, 88, 89, 90, 91, 92, 93, 94, 95, 96, 97, 98, 99, 100, 101, 102, 103, 104, 105, 106, 107, 108, 109, 110, 111, 112, 113, 114, 115, 116, 117, 118, 119, 120, 121, 122, 123, 124, 125, 126, 127, 128, 129, 130, 131, 132, 133, 134
LED Color Temperature CCT [K]	2000, 2500, 2700, 3000, 3500, 4000, 4200, 5000, 5700
Color Rendering Index [CRI]	80, 90
Beam Angle [°]	90°x50°
Light Distribution DIR/IND	DIR

Dane techniczne

TA [°C]	0-30
Ingress Protection [IP]	20

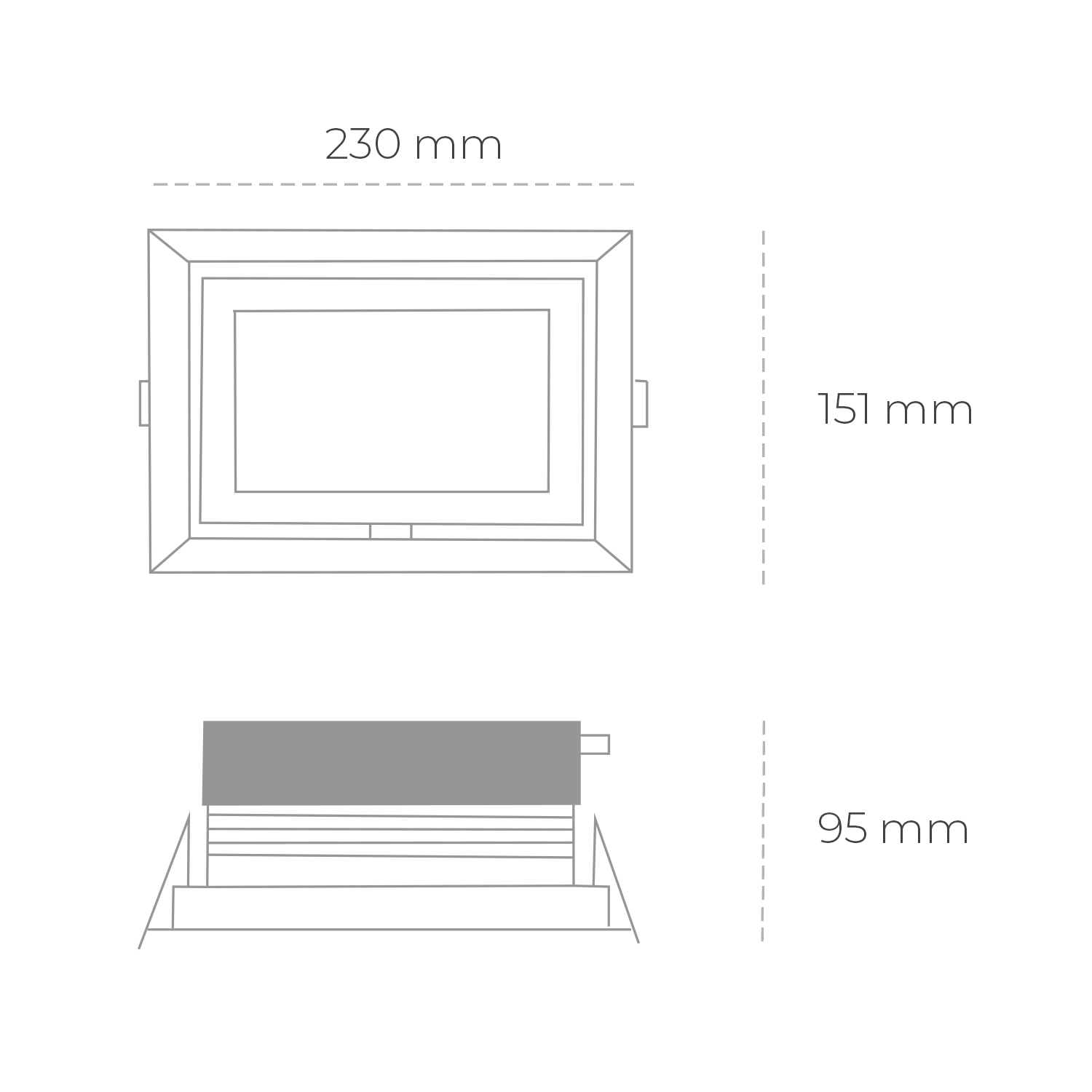

Wymiary

Diameter ø [mm]	0
Weight [KG]	1.26 kg

Warianty

Item	Code	Lenght	Width	Height	W	Lumen Output lm	Efficacy lm/W	Beam Angle	CRI	Color K	Type of Control	IP	Color
STEIN 2 1077lm 10W 827 0 90°x50° GR IP20 ON/OFF	MI104502815	230	151	95	10	1077	108	90°X50°	80	2700	ON/OFF	20	GREY
STEIN 2 1508lm 13W 827 0 90°x50° GR IP20 ON/OFF	MI101167510	230	151	95	13	1508	116	90°X50°	80	2700	ON/OFF	20	GREY
STEIN 2 2155lm 19W 827 0 90°x50° GR IP20 ON/OFF	MI106103845	230	151	95	19	2155	113	90°X50°	80	2700	ON/OFF	20	GREY
STEIN 2 2370lm 21W 827 0 90°x50° GR IP20 ON/OFF	MI105259908	230	151	95	21	2370	113	90°X50°	80	2700	ON/OFF	20	GREY
STEIN 2 2586lm 23W 827 0 90°x50° GR IP20 ON/OFF	MI105176232	230	151	95	23	2586	112	90°X50°	80	2700	ON/OFF	20	GREY
STEIN 2 2801lm 25W 827 0 90°x50° GR IP20 ON/OFF	MI108644109	230	151	95	25	2801	112	90°X50°	80	2700	ON/OFF	20	GREY
STEIN 2 3017lm 27W 827 0 90°x50° GR IP20 ON/OFF	MI107564795	230	151	95	27	3017	112	90°X50°	80	2700	ON/OFF	20	GREY
STEIN 2 3448lm 31W 827 0 90°x50° GR IP20 ON/OFF	MI102298664	230	151	95	31	3448	111	90°X50°	80	2700	ON/OFF	20	GREY
STEIN 2 3880lm 35W 827 0 90°x50° GR IP20 ON/OFF	MI100381299	230	151	95	35	3880	111	90°X50°	80	2700	ON/OFF	20	GREY
STEIN 2 4095lm 37W 827 0 90°x50° GR IP20 ON/OFF	MI100648862	230	151	95	37	4095	111	90°X50°	80	2700	ON/OFF	20	GREY
STEIN 2 888lm 10W 927 0 90°x50° GR IP20 ON/OFF	MI103535712	230	151	95	10	888	89	90°X50°	90	2700	ON/OFF	20	GREY
STEIN 2 1244lm 14W 827 0 90°x50° GR IP20 ON/OFF	MI103174412	230	151	95	14	1244	89	90°X50°	80	2700	ON/OFF	20	GREY
STEIN 2 1777lm 19W 827 0 90°x50° GR IP20 ON/OFF	MI105992096	230	151	95	19	1777	94	90°X50°	80	2700	ON/OFF	20	GREY
STEIN 2 1955lm 21W 827 0 90°x50° GR IP20 ON/OFF	MI105146873	230	151	95	21	1955	93	90°X50°	80	2700	ON/OFF	20	GREY
STEIN 2 2133lm 23W 827 0 90°x50° GR IP20 ON/OFF	MI102913501	230	151	95	23	2133	93	90°X50°	80	2700	ON/OFF	20	GREY
STEIN 2 2310lm 25W 827 0 90°x50° GR IP20 ON/OFF	MI105125160	230	151	95	25	2310	92	90°X50°	80	2700	ON/OFF	20	GREY
STEIN 2 2488lm 27W 827 0 90°x50° GR IP20 ON/OFF	MI108827824	230	151	95	27	2488	92	90°X50°	80	2700	ON/OFF	20	GREY
STEIN 2 2844lm 31W 827 0 90°x50° GR IP20 ON/OFF	MI100103953	230	151	95	31	2844	92	90°X50°	80	2700	ON/OFF	20	GREY
STEIN 2 3200lm 35W 827 0 90°x50° GR IP20 ON/OFF	MI104526371	230	151	95	35	3200	91	90°X50°	80	2700	ON/OFF	20	GREY
STEIN 2 3377lm 37W 827 0 90°x50° GR IP20 ON/OFF	MI100026794	230	151	95	37	3377	91	90°X50°	80	2700	ON/OFF	20	GREY
STEIN 2 1088lm 10W 830 0 90°x50° GR IP20 ON/OFF	MI108141268	230	151	95	10	1088	109	90°X50°	80	3000	ON/OFF	20	GREY
STEIN 2 1524lm 14W 830 0 90°x50° GR IP20 ON/OFF	MI109465236	230	151	95	14	1524	109	90°X50°	80	3000	ON/OFF	20	GREY
STEIN 2 2177lm 19W 830 0 90°x50° GR IP20 ON/OFF	MI103780990	230	151	95	19	2177	115	90°X50°	80	3000	ON/OFF	20	GREY
STEIN 2 2395lm 21W 830 0 90°x50° GR IP20 ON/OFF	MI104982707	230	151	95	21	2395	114	90°X50°	80	3000	ON/OFF	20	GREY
STEIN 2 2612lm 23W 830 0 90°x50° GR IP20 ON/OFF	MI104568184	230	151	95	23	2612	114	90°X50°	80	3000	ON/OFF	20	GREY
