TIDER A MICRO
TIDER A MICRO

Dane elektryczne

Total Consumption [W]	10, 11, 13, 14, 19, 20, 21, 23
IEC Protection Class	2
Connector Type	###

Optyka

TYPE OF CONTROL	ON/OFF
LED LIFETIME Ta25 [h]	64000

Dane techniczne

Total Consumption [W]	10, 11, 13, 14, 19, 20, 21, 23
Lumen Output [LM]	716, 818, 888, 915, 916, 921, 956, 966, 1002, 1054, 1074, 1077, 1088, 1112, 1129, 1135, 1157, 1197, 1236, 1244, 1256, 1260, 1266, 1290, 1298, 1300, 1339, 1352, 1392, 1456, 1476, 1508, 1509, 1524, 1558, 1580, 1589, 1610, 1621, 1651, 1704, 1727, 1739, 1759, 1760, 1777, 1804, 1808, 1844, 1872, 1916, 1921, 1932, 1955, 2028, 2040, 2059, 2070, 2080, 2126, 2130, 2133, 2155, 2177, 2213, 2226, 2230, 2246, 2271, 2304, 2316, 2319, 2329, 2370, 2378, 2395, 2418, 2443, 2448, 2497, 2514, 2525, 2547, 2548, 2551, 2586, 2596, 2612, 2672, 2722, 2725, 2780, 2789, 2793, 2810, 2899, 3029, 3034
Efficacy lm/W	70, 72, 73, 81, 82, 83, 88, 89, 90, 91, 92, 93, 94, 96, 97, 98, 99, 101, 102, 104, 105, 106, 107, 108, 109, 110, 111, 112, 113, 114, 115, 116, 117, 118, 119, 120, 121, 122, 124, 126, 127, 129, 130, 132, 133, 134
Beam Angle [°]	15°, 24°, 36°, 60°
Light Distribution DIR/IND	DIR
LED Color Temperature CCT [K]	2000, 2500, 2700, 3000, 3500, 4000, 4200, 5000, 5700
Color Rendering Index [CRI]	80, 90
LED LIFETIME Ta25 [h]	64000
TYPE OF CONTROL	ON/OFF
Body Color	GREY, BLACK, WHITE
Ingress Protection [IP]	20
Diameter ø [mm]	136
Weight [KG]	0.60 kg

Opis:

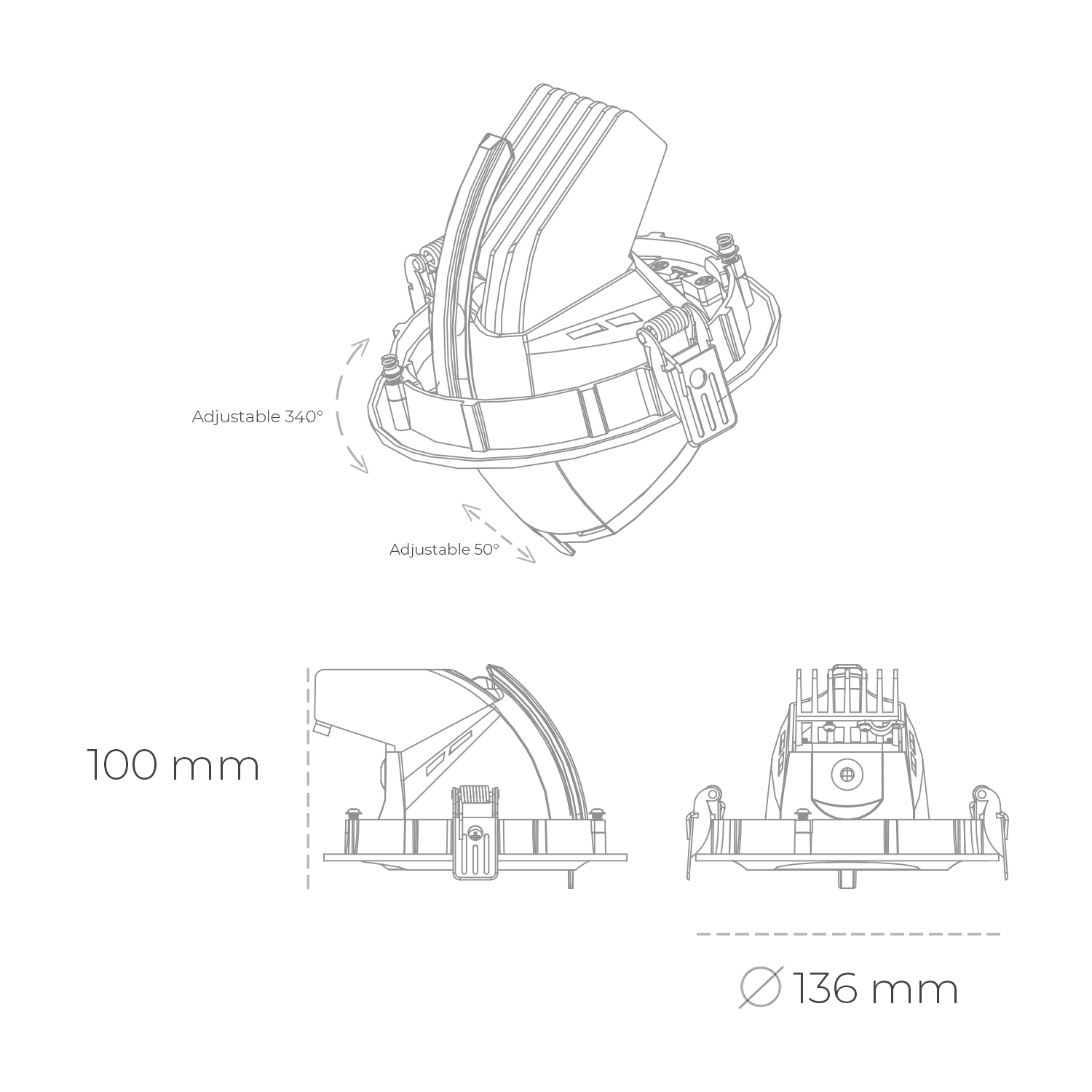

LED downlight for drop ceiling installation. Aluminium housing. Glass cover included. Available in white, black and grey. Any RAL palette colour available on enquiry. Housing enables adjustment in two axis planes. Reflector beams available: 15°, 24°, 36° and 60°. Maximum power is 23W.

RAL colours on enquiry, honeycomb louver on enquiry , Casambi on enquiry, DALI on enquiry, Phase-cut dimming on enquiry.

Do pobrania:

Karta katalogowa:

Ilustracje techniczne:

Instrukcja montażu:

Certyfikaty:

Dane fotometryczne:

Dane elektryczne

Total Consumption [W]	10, 11, 13, 14, 19, 20, 21, 23
IEC Protection Class	2
Connector Type	###

Optyka

TYPE OF CONTROL	ON/OFF
LED LIFETIME Ta25 [h]	64000

Dane techniczne

Total Consumption [W]	10, 11, 13, 14, 19, 20, 21, 23
Lumen Output [LM]	716, 818, 888, 915, 916, 921, 956, 966, 1002, 1054, 1074, 1077, 1088, 1112, 1129, 1135, 1157, 1197, 1236, 1244, 1256, 1260, 1266, 1290, 1298, 1300, 1339, 1352, 1392, 1456, 1476, 1508, 1509, 1524, 1558, 1580, 1589, 1610, 1621, 1651, 1704, 1727, 1739, 1759, 1760, 1777, 1804, 1808, 1844, 1872, 1916, 1921, 1932, 1955, 2028, 2040, 2059, 2070, 2080, 2126, 2130, 2133, 2155, 2177, 2213, 2226, 2230, 2246, 2271, 2304, 2316, 2319, 2329, 2370, 2378, 2395, 2418, 2443, 2448, 2497, 2514, 2525, 2547, 2548, 2551, 2586, 2596, 2612, 2672, 2722, 2725, 2780, 2789, 2793, 2810, 2899, 3029, 3034
Efficacy lm/W	70, 72, 73, 81, 82, 83, 88, 89, 90, 91, 92, 93, 94, 96, 97, 98, 99, 101, 102, 104, 105, 106, 107, 108, 109, 110, 111, 112, 113, 114, 115, 116, 117, 118, 119, 120, 121, 122, 124, 126, 127, 129, 130, 132, 133, 134
Beam Angle [°]	15°, 24°, 36°, 60°
Light Distribution DIR/IND	DIR
LED Color Temperature CCT [K]	2000, 2500, 2700, 3000, 3500, 4000, 4200, 5000, 5700
Color Rendering Index [CRI]	80, 90
LED LIFETIME Ta25 [h]	64000
TYPE OF CONTROL	ON/OFF
Body Color	GREY, BLACK, WHITE
Ingress Protection [IP]	20
Diameter ø [mm]	136
Weight [KG]	0.60 kg

Obudowa

Body Color	GREY, BLACK, WHITE

Dane techniczne oświetlenia

Total Consumption [W]	10, 11, 13, 14, 19, 20, 21, 23
Lumen Output [LM]	716, 818, 888, 915, 916, 921, 956, 966, 1002, 1054, 1074, 1077, 1088, 1112, 1129, 1135, 1157, 1197, 1236, 1244, 1256, 1260, 1266, 1290, 1298, 1300, 1339, 1352, 1392, 1456, 1476, 1508, 1509, 1524, 1558, 1580, 1589, 1610, 1621, 1651, 1704, 1727, 1739, 1759, 1760, 1777, 1804, 1808, 1844, 1872, 1916, 1921, 1932, 1955, 2028, 2040, 2059, 2070, 2080, 2126, 2130, 2133, 2155, 2177, 2213, 2226, 2230, 2246, 2271, 2304, 2316, 2319, 2329, 2370, 2378, 2395, 2418, 2443, 2448, 2497, 2514, 2525, 2547, 2548, 2551, 2586, 2596, 2612, 2672, 2722, 2725, 2780, 2789, 2793, 2810, 2899, 3029, 3034
Efficacy lm/W	70, 72, 73, 81, 82, 83, 88, 89, 90, 91, 92, 93, 94, 96, 97, 98, 99, 101, 102, 104, 105, 106, 107, 108, 109, 110, 111, 112, 113, 114, 115, 116, 117, 118, 119, 120, 121, 122, 124, 126, 127, 129, 130, 132, 133, 134
LED Color Temperature CCT [K]	2000, 2500, 2700, 3000, 3500, 4000, 4200, 5000, 5700
Color Rendering Index [CRI]	80, 90
Beam Angle [°]	15°, 24°, 36°, 60°
Light Distribution DIR/IND	DIR

Dane techniczne

TA [°C]	0-30
Ingress Protection [IP]	20

Wymiary

Diameter ø [mm]	136
Weight [KG]	0.60 kg

Warianty

Item	Code	Lenght	Width	Height	Diameter	W	Lumen Output lm	Efficacy lm/W	Beam Angle	CRI	Color K	Type of Control	IP	Color
TIDER A MICRO 1077lm 10W 827 136 15° GR IP20 ON/OFF	MI105164319	136	136	100	136	10	1077	108	15°	80	2700	ON/OFF	20	GREY
TIDER A MICRO 1508lm 13W 827 136 15° GR IP20 ON/OFF	MI101236812	136	136	100	136	13	1508	116	15°	80	2700	ON/OFF	20	GREY
TIDER A MICRO 2155lm 19W 827 136 15° GR IP20 ON/OFF	MI103017711	136	136	100	136	19	2155	113	15°	80	2700	ON/OFF	20	GREY
TIDER A MICRO 2370lm 21W 827 136 15° GR IP20 ON/OFF	MI104595940	136	136	100	136	21	2370	113	15°	80	2700	ON/OFF	20	GREY
TIDER A MICRO 2586lm 23W 827 136 15° GR IP20 ON/OFF	MI106004452	136	136	100	136	23	2586	112	15°	80	2700	ON/OFF	20	GREY
TIDER A MICRO 888lm 10W 927 136 15° GR IP20 ON/OFF	MI101452045	136	136	100	136	10	888	89	15°	90	2700	ON/OFF	20	GREY
TIDER A MICRO 1244lm 14W 827 136 15° GR IP20 ON/OFF	MI108092818	136	136	100	136	14	1244	89	15°	80	2700	ON/OFF	20	GREY
TIDER A MICRO 1777lm 19W 827 136 15° GR IP20 ON/OFF	MI100373612	136	136	100	136	19	1777	94	15°	80	2700	ON/OFF	20	GREY
TIDER A MICRO 1955lm 21W 827 136 15° GR IP20 ON/OFF	MI107326825	136	136	100	136	21	1955	93	15°	80	2700	ON/OFF	20	GREY
TIDER A MICRO 2133lm 23W 827 136 15° GR IP20 ON/OFF	MI105969043	136	136	100	136	23	2133	93	15°	80	2700	ON/OFF	20	GREY
TIDER A MICRO 1088lm 10W 830 136 15° GR IP20 ON/OFF	MI104179116	136	136	100	136	10	1088	109	15°	80	3000	ON/OFF	20	GREY
TIDER A MICRO 1524lm 14W 830 136 15° GR IP20 ON/OFF	MI106602912	136	136	100	136	14	1524	109	15°	80	3000	ON/OFF	20	GREY
TIDER A MICRO 2177lm 19W 830 136 15° GR IP20 ON/OFF	MI100523767	136	136	100	136	19	2177	115	15°	80	3000	ON/OFF	20	GREY
TIDER A MICRO 2395lm 21W 830 136 15° GR IP20 ON/OFF	MI100176772	136	136	100	136	21	2395	114	15°	80	3000	ON/OFF	20	GREY
TIDER A MICRO 2612lm 23W 830 136 15° GR IP20 ON/OFF	MI101900153	136	136	100	136	23	2612	114	15°	80	3000	ON/OFF	20	GREY
TIDER A MICRO 921lm 10W 930 136 15° GR IP20 ON/OFF	MI104592170	136	136	100	136	10	921	92	15°	90	3000	ON/OFF	20	GREY
TIDER A MICRO 1290lm 14W 930 136 15° GR IP20 ON/OFF	MI101047361	136	136	100	136	14	1290	92	15°	90	3000	ON/OFF	20	GREY
TIDER A MICRO 1844lm 19W 930 136 15° GR IP20 ON/OFF	MI105139252	136	136	100	136	19	1844	97	15°	90	3000	ON/OFF	20	GREY
TIDER A MICRO 2028lm 21W 930 136 15° GR IP20 ON/OFF	MI101007371	136	136	100	136	21	2028	97	15°	90	3000	ON/OFF	20	GREY
TIDER A MICRO 2213lm 23W 930 136 15° GR IP20 ON/OFF	MI106647453	136	136	100	136	23	2213	96	15°	90	3000	ON/OFF	20	GREY
TIDER A MICRO 1112lm 10W 835 136 15° GR IP20 ON/OFF	MI109711115	136	136	100	136	10	1112	111	15°	80	3500	ON/OFF	20	GREY
TIDER A MICRO 1558lm 14W 835 136 15° GR IP20 ON/OFF	MI100940688	136	136	100	136	14	1558	111	15°	80	3500	ON/OFF	20	GREY
TIDER A MICRO 2226lm 19W 835 136 15° GR IP20 ON/OFF	MI108020324	136	136	100	136	19	2226	117	15°	80	3500	ON/OFF	20	GREY
TIDER A MICRO 2448lm 21W 835 136 15° GR IP20 ON/OFF	MI102643135	136	136	100	136	21	2448	117	15°	80	3500	ON/OFF	20	GREY
TIDER A MICRO 2672lm 23W 835 136 15° GR IP20 ON/OFF	MI105184647	136	136	100	136	23	2672	116	15°	80	3500	ON/OFF	20	GREY
