TIDER ZTIDER Z
Dane elektryczne
| Total Consumption [W] | 10, 11, 13, 14, 19, 20, 21, 23, 25, 27, 31, 34, 35, 36, 37 |
|---|---|
| IEC Protection Class | 2 |
| Connector Type | ### |
Optyka
| TYPE OF CONTROL | ON/OFF |
|---|---|
| LED LIFETIME Ta25 [h] | 64000 |
Dane techniczne
| Total Consumption [W] | 10, 11, 13, 14, 19, 20, 21, 23, 25, 27, 31, 34, 35, 36, 37 |
|---|---|
| Lumen Output [LM] | 716, 818, 888, 915, 916, 921, 956, 966, 1002, 1054, 1074, 1077, 1088, 1112, 1129, 1135, 1157, 1197, 1236, 1244, 1256, 1260, 1266, 1290, 1298, 1300, 1339, 1352, 1392, 1456, 1476, 1508, 1509, 1524, 1558, 1580, 1589, 1610, 1621, 1651, 1704, 1727, 1739, 1744, 1759, 1760, 1777, 1804, 1808, 1844, 1872, 1879, 1916, 1921, 1932, 1955, 1996, 2015, 2028, 2040, 2059, 2070, 2080, 2126, 2130, 2133, 2155, 2156, 2177, 2213, 2220, 2226, 2230, 2237, 2245, 2246, 2271, 2304, 2310, 2316, 2319, 2329, 2368, 2370, 2378, 2392, 2395, 2397, 2418, 2432, 2433, 2443, 2448, 2488, 2497, 2512, 2514, 2525, 2535, 2547, 2548, 2551, 2581, 2586, 2596, 2604, 2612, 2653, 2672, 2694, 2700, 2706, 2718, 2722, 2725, 2780, 2787, 2789, 2793, 2801, 2810, 2830, 2831, 2844, 2894, 2896, 2899, 2907, 2927, 2928, 2950, 2952, 2988, 3011, 3017, 3021, 3029, 3034, 3048, 3061, 3092, 3116, 3123, 3128, 3132, 3147, 3179, 3200, 3230, 3242, 3258, 3267, 3272, 3277, 3320, 3344, 3377, 3439, 3448, 3480, 3484, 3499, 3502, 3504, 3508, 3562, 3633, 3636, 3672, 3706, 3778, 3811, 3880, 3920, 3964, 3971, 4008, 4088, 4095, 4137, 4169, 4202, 4230, 4315, 4401, 4414, 4418, 4425, 4640, 4648 |
| Efficacy lm/W | 64, 70, 72, 73, 77, 78, 80, 81, 82, 83, 84, 85, 86, 87, 88, 89, 90, 91, 92, 93, 94, 95, 96, 97, 98, 99, 100, 101, 102, 103, 104, 105, 106, 107, 108, 109, 110, 111, 112, 113, 114, 115, 116, 117, 118, 119, 120, 121, 122, 123, 124, 125, 126, 127, 128, 129, 130, 131, 132, 133, 134 |
| Beam Angle [°] | 12°, 24°, 36°, 60° |
| Light Distribution DIR/IND | DIR |
| LED Color Temperature CCT [K] | 2000, 2500, 2700, 3000, 3500, 4000, 4200, 5000, 5700 |
| Color Rendering Index [CRI] | 80, 90 |
| LED LIFETIME Ta25 [h] | 64000 |
| TYPE OF CONTROL | ON/OFF |
| Body Color | GREY, BLACK, WHITE |
| Ingress Protection [IP] | 20 |
| Diameter ø [mm] | 205 |
| Weight [KG] | 1.50 kg |
Opis:

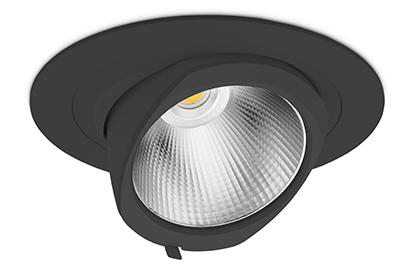

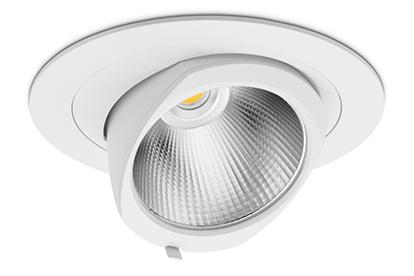

LED downlight for drop ceiling installation. Aluminium housing. Glass cover included. Available in white, black and grey. Any RAL palette colour available on enquiry. Housing enables adjustment in two axis planes. Reflector beams available: 12°, 24°, 36° and 60°. Maximum power is 37W.
RAL colours on enquiry, honeycomb louver on enquiry , Casambi on enquiry, DALI on enquiry, Phase-cut dimming on enquiry.
Dane elektryczne
| Total Consumption [W] | 10, 11, 13, 14, 19, 20, 21, 23, 25, 27, 31, 34, 35, 36, 37 |
|---|---|
| IEC Protection Class | 2 |
| Connector Type | ### |
Optyka
| TYPE OF CONTROL | ON/OFF |
|---|---|
| LED LIFETIME Ta25 [h] | 64000 |
Dane techniczne
| Total Consumption [W] | 10, 11, 13, 14, 19, 20, 21, 23, 25, 27, 31, 34, 35, 36, 37 |
|---|---|
| Lumen Output [LM] | 716, 818, 888, 915, 916, 921, 956, 966, 1002, 1054, 1074, 1077, 1088, 1112, 1129, 1135, 1157, 1197, 1236, 1244, 1256, 1260, 1266, 1290, 1298, 1300, 1339, 1352, 1392, 1456, 1476, 1508, 1509, 1524, 1558, 1580, 1589, 1610, 1621, 1651, 1704, 1727, 1739, 1744, 1759, 1760, 1777, 1804, 1808, 1844, 1872, 1879, 1916, 1921, 1932, 1955, 1996, 2015, 2028, 2040, 2059, 2070, 2080, 2126, 2130, 2133, 2155, 2156, 2177, 2213, 2220, 2226, 2230, 2237, 2245, 2246, 2271, 2304, 2310, 2316, 2319, 2329, 2368, 2370, 2378, 2392, 2395, 2397, 2418, 2432, 2433, 2443, 2448, 2488, 2497, 2512, 2514, 2525, 2535, 2547, 2548, 2551, 2581, 2586, 2596, 2604, 2612, 2653, 2672, 2694, 2700, 2706, 2718, 2722, 2725, 2780, 2787, 2789, 2793, 2801, 2810, 2830, 2831, 2844, 2894, 2896, 2899, 2907, 2927, 2928, 2950, 2952, 2988, 3011, 3017, 3021, 3029, 3034, 3048, 3061, 3092, 3116, 3123, 3128, 3132, 3147, 3179, 3200, 3230, 3242, 3258, 3267, 3272, 3277, 3320, 3344, 3377, 3439, 3448, 3480, 3484, 3499, 3502, 3504, 3508, 3562, 3633, 3636, 3672, 3706, 3778, 3811, 3880, 3920, 3964, 3971, 4008, 4088, 4095, 4137, 4169, 4202, 4230, 4315, 4401, 4414, 4418, 4425, 4640, 4648 |
| Efficacy lm/W | 64, 70, 72, 73, 77, 78, 80, 81, 82, 83, 84, 85, 86, 87, 88, 89, 90, 91, 92, 93, 94, 95, 96, 97, 98, 99, 100, 101, 102, 103, 104, 105, 106, 107, 108, 109, 110, 111, 112, 113, 114, 115, 116, 117, 118, 119, 120, 121, 122, 123, 124, 125, 126, 127, 128, 129, 130, 131, 132, 133, 134 |
| Beam Angle [°] | 12°, 24°, 36°, 60° |
| Light Distribution DIR/IND | DIR |
| LED Color Temperature CCT [K] | 2000, 2500, 2700, 3000, 3500, 4000, 4200, 5000, 5700 |
| Color Rendering Index [CRI] | 80, 90 |
| LED LIFETIME Ta25 [h] | 64000 |
| TYPE OF CONTROL | ON/OFF |
| Body Color | GREY, BLACK, WHITE |
| Ingress Protection [IP] | 20 |
| Diameter ø [mm] | 205 |
| Weight [KG] | 1.50 kg |
Obudowa
| Body Color | GREY, BLACK, WHITE |
|---|
Dane techniczne oświetlenia
| Total Consumption [W] | 10, 11, 13, 14, 19, 20, 21, 23, 25, 27, 31, 34, 35, 36, 37 |
|---|---|
| Lumen Output [LM] | 716, 818, 888, 915, 916, 921, 956, 966, 1002, 1054, 1074, 1077, 1088, 1112, 1129, 1135, 1157, 1197, 1236, 1244, 1256, 1260, 1266, 1290, 1298, 1300, 1339, 1352, 1392, 1456, 1476, 1508, 1509, 1524, 1558, 1580, 1589, 1610, 1621, 1651, 1704, 1727, 1739, 1744, 1759, 1760, 1777, 1804, 1808, 1844, 1872, 1879, 1916, 1921, 1932, 1955, 1996, 2015, 2028, 2040, 2059, 2070, 2080, 2126, 2130, 2133, 2155, 2156, 2177, 2213, 2220, 2226, 2230, 2237, 2245, 2246, 2271, 2304, 2310, 2316, 2319, 2329, 2368, 2370, 2378, 2392, 2395, 2397, 2418, 2432, 2433, 2443, 2448, 2488, 2497, 2512, 2514, 2525, 2535, 2547, 2548, 2551, 2581, 2586, 2596, 2604, 2612, 2653, 2672, 2694, 2700, 2706, 2718, 2722, 2725, 2780, 2787, 2789, 2793, 2801, 2810, 2830, 2831, 2844, 2894, 2896, 2899, 2907, 2927, 2928, 2950, 2952, 2988, 3011, 3017, 3021, 3029, 3034, 3048, 3061, 3092, 3116, 3123, 3128, 3132, 3147, 3179, 3200, 3230, 3242, 3258, 3267, 3272, 3277, 3320, 3344, 3377, 3439, 3448, 3480, 3484, 3499, 3502, 3504, 3508, 3562, 3633, 3636, 3672, 3706, 3778, 3811, 3880, 3920, 3964, 3971, 4008, 4088, 4095, 4137, 4169, 4202, 4230, 4315, 4401, 4414, 4418, 4425, 4640, 4648 |
| Efficacy lm/W | 64, 70, 72, 73, 77, 78, 80, 81, 82, 83, 84, 85, 86, 87, 88, 89, 90, 91, 92, 93, 94, 95, 96, 97, 98, 99, 100, 101, 102, 103, 104, 105, 106, 107, 108, 109, 110, 111, 112, 113, 114, 115, 116, 117, 118, 119, 120, 121, 122, 123, 124, 125, 126, 127, 128, 129, 130, 131, 132, 133, 134 |
| LED Color Temperature CCT [K] | 2000, 2500, 2700, 3000, 3500, 4000, 4200, 5000, 5700 |
| Color Rendering Index [CRI] | 80, 90 |
| Beam Angle [°] | 12°, 24°, 36°, 60° |
| Light Distribution DIR/IND | DIR |
Dane techniczne
| TA [°C] | 0-30 |
|---|---|
| Ingress Protection [IP] | 20 |
Wymiary
| Diameter ø [mm] | 205 |
|---|---|
| Weight [KG] | 1.50 kg |
