TRIS R150 IP65 TRANSPARENT 1550lm 20W 940 WH IP65 ON/OFF
Item No. MI104502028
TRIS R150 IP65

TRIS R150 IP65 TRANSPARENT 1550lm 20W 940 WH IP65 ON/OFF

MI104502028

Dane ogólne
Key Advantages

Various optic beam angle versions designed to suit any applications and requirements.

Product ShapeTube
TypeSpotlight downlight
MountingS
Dane elektryczne
Main Feed AC [V]220-240
Main Feed Frequency [Hz]50-60
Total Consumption [W]20
IEC Protection ClassI
Optyka
DiffuserTRANSPARENT
Type of ControlON/OFF
LED LIFETIME Ta25 [h]L70B50 50.000h
Dane techniczne
Total Consumption [W]20
Lumen Output [LM]1550
Efficacy [lm/W]78
DiffuserTRANSPARENT
Beam Angle [°]24°
Light distributionDIR
CCT [K]4000
CRI90
MacAdam step3
LED LIFETIME Ta25 [h]L70B50 50.000h
Type of ControlON/OFF
Housing colorWHITE
IP65
Mechanical Protection [IK]01
Main Feed AC [V]220-240
Opis:

A small, configurable spotlight – surface downlight for interior lighting. A wide range of technical parameter and luminaire appearance variants for versatile applications. COB technology and a high-performance, metalized, facetted plastic reflector guarantee the optimum construction of the optical system and a high efficiency. The tempered transparent glass protects the luminaire against dust, dirt. A ring or frame made of die-cast aluminium or steel sheet, painted white or black as a standard.

Key Advantages:

Various optic beam angle versions designed to suit any applications and requirements.

Do pobrania:
Karta katalogowa:
1
Instrukcja montażu:
1
Certyfikaty:
1
Dane fotometryczne:
1
/soft4net/img/project/icons/DO WSZYSTKICH PRODUKTOW/CE.svg
/soft4net/img/project/icons/AD - IP/65.svg
/soft4net/img/project/icons/J - MOUNTING/S.svg
/soft4net/img/project/icons/W - HOUSING COLOR/WHITE.svg
/soft4net/img/project/icons/Y + Z - CCT K + CRI/4000_90.svg
TRIS R150 IP65
Dane ogólne
Key Advantages

Various optic beam angle versions designed to suit any applications and requirements.

Product ShapeTube
TypeSpotlight downlight
MountingS
Dane elektryczne
Main Feed AC [V]220-240
Main Feed Frequency [Hz]50-60
Total Consumption [W]20
IEC Protection ClassI
Optyka
DiffuserTRANSPARENT
Type of ControlON/OFF
LED LIFETIME Ta25 [h]L70B50 50.000h
Dane techniczne
Total Consumption [W]20
Lumen Output [LM]1550
Efficacy [lm/W]78
DiffuserTRANSPARENT
Beam Angle [°]24°
Light distributionDIR
CCT [K]4000
CRI90
MacAdam step3
LED LIFETIME Ta25 [h]L70B50 50.000h
Type of ControlON/OFF
Housing colorWHITE
IP65
Mechanical Protection [IK]01
Main Feed AC [V]220-240
Obudowa
Housing colorWHITE
FinishMatt, Gloss
Dane techniczne oświetlenia
Light SourceLED
Total Consumption [W]20
Lumen Output [LM]1550
Efficacy [lm/W]78
CCT [K]4000
CRI90
MacAdam step3
Beam Angle [°]24°
Light distributionDIR
Dane techniczne
IP65
Mechanical Protection [IK]01
Generating PDF...

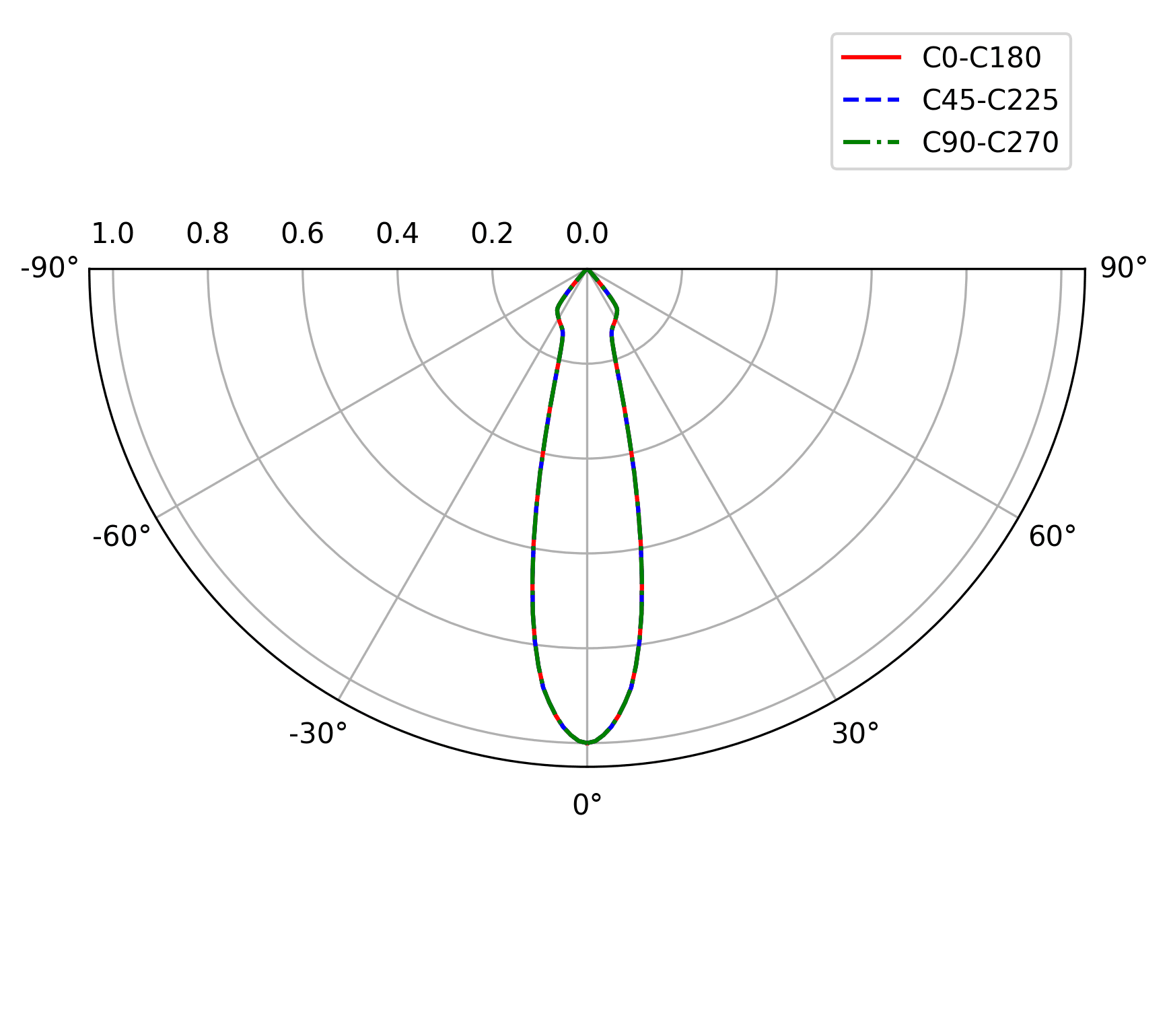

Ilustracje techniczne

TRIS R150 IP65
