URO STANDARD ECO 92 5W RD 220-240V AC
URO STANDARD ECO 92 5W RD 220-240V AC

Dane ogólne

Application	In-ground
Key Advantages	Variety of light distribution beam angles, power options W, shape designs and dimming options.
Product Shape	Round
Type	Illumination
Mounting	In-ground

Dane elektryczne

Main Feed AC [V]	200-240V AC
Main Feed Frequency [Hz]	50-60
Total Consumption [W]	5
IEC Protection Class	I
Connector Type	0.5m
Wiring	H07RN-F 3G1

Optyka

Diffuser Material	Tempered glass
CONTROL SYSTEM	ON-OFF
LED LIFETIME Ta25 [h]	≥ 60 000h

Dane techniczne

Total Consumption [W]	5
Lumen Output [LM]	500 – 550
Efficacy lm/W	100– 110
Diffuser Material	Tempered glass
Body Material	SS316L, ALU
Beam Angle [°]	25, 45
Light Distribution DIR/IND	DIR
LED Color Temperature CCT [K]	2700, 3000, 4000, 5000
Color Rendering Index [CRI]	80
MacAdam step	<3
LED LIFETIME Ta25 [h]	≥ 60 000h
Body Color	SST
Ingress Protection [IP]	67
Mechanical Protection [IK]	10
Main Feed AC [V]	200-240V AC
Diameter ø [mm]	92

Opis:

URO STANDARD ECONOMY series with a maximum power of 5W, was designed for the most demanding customers looking for customized and economical solutions. The body of the luminaire is made of cast aluminum, which enabled a significant reduction in weight and price. The luminaires are ideal for illuminating garden or park spaces. Due to their lightweight design, they are easy to install on exterior walls. URO STANDARD ECONOMY luminaire can be used to illuminate a wide range of places and objects, such as parks, gardens, terraces, squares, premises, plants.

Key Advantages:

Variety of light distribution beam angles, power options W, shape designs and dimming options.

Do pobrania:

Karta katalogowa:

Ilustracje techniczne:

Instrukcja montażu:

Certyfikaty:

Dane fotometryczne:

Dane ogólne

Application	In-ground
Key Advantages	Variety of light distribution beam angles, power options W, shape designs and dimming options.
Product Shape	Round
Type	Illumination
Mounting	In-ground

Dane elektryczne

Main Feed AC [V]	200-240V AC
Main Feed Frequency [Hz]	50-60
Total Consumption [W]	5
IEC Protection Class	I
Connector Type	0.5m
Wiring	H07RN-F 3G1

Optyka

Diffuser Material	Tempered glass
CONTROL SYSTEM	ON-OFF
LED LIFETIME Ta25 [h]	≥ 60 000h

Dane techniczne

Total Consumption [W]	5
Lumen Output [LM]	500 – 550
Efficacy lm/W	100– 110
Diffuser Material	Tempered glass
Body Material	SS316L, ALU
Beam Angle [°]	25, 45
Light Distribution DIR/IND	DIR
LED Color Temperature CCT [K]	2700, 3000, 4000, 5000
Color Rendering Index [CRI]	80
MacAdam step	<3
LED LIFETIME Ta25 [h]	≥ 60 000h
Body Color	SST
Ingress Protection [IP]	67
Mechanical Protection [IK]	10
Main Feed AC [V]	200-240V AC
Diameter ø [mm]	92

Obudowa

Body Material	SS316L, ALU
Body Color	SST

Dane techniczne oświetlenia

Light Source	LED
Total Consumption [W]	5
Lumen Output [LM]	500 – 550
Efficacy lm/W	100– 110
LED Color Temperature CCT [K]	2700, 3000, 4000, 5000
Color Rendering Index [CRI]	80
MacAdam step	<3
Beam Angle [°]	25, 45
Light Distribution DIR/IND	DIR

Dane techniczne

TA [°C]	-20 to +55
Ingress Protection [IP]	67
Mechanical Protection [IK]	10
Corrosion Class	C3, C4

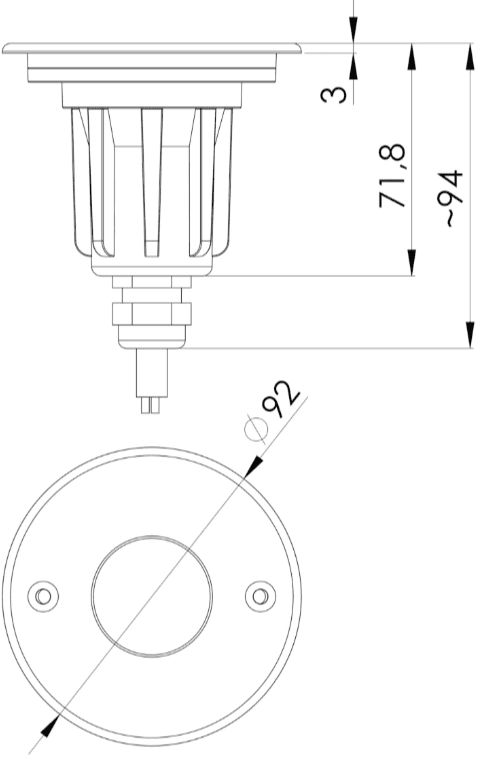

Wymiary

Diameter ø [mm]	92

Warianty

Item	Code	Height	Diameter	W	Lumen Output lm	Efficacy lm/W	Diffuser	Beam Angle	CRI	Color K	IP	Color
URO NGROUND STANDARD ECONOMY RD 220-240V AC GLASS 500lm 5W 827 92 SS IP67	MI41976936	94	92	5	500	100	GLASS	10	80	2700	67	SST
URO NGROUND STANDARD ECONOMY RD 220-240V AC GLASS 500lm 5W 827 92 SS IP67	MI45641933	94	92	5	500	100	GLASS	20	80	2700	67	SST
URO NGROUND STANDARD ECONOMY RD 220-240V AC GLASS 500lm 5W 830 92 SS IP67	MI41756254	94	92	5	500	100	GLASS	10	80	3000	67	SST
URO NGROUND STANDARD ECONOMY RD 220-240V AC GLASS 500lm 5W 830 92 SS IP67	MI49043036	94	92	5	500	100	GLASS	20	80	3000	67	SST
URO NGROUND STANDARD ECONOMY RD 220-240V AC GLASS 550lm 5W 840 92 SS IP67	MI46483199	94	92	5	550	110	GLASS	10	80	4000	67	SST
URO NGROUND STANDARD ECONOMY RD 220-240V AC GLASS 550lm 5W 840 92 SS IP67	MI49700540	94	92	5	550	110	GLASS	20	80	4000	67	SST
URO NGROUND STANDARD ECONOMY RD 220-240V AC GLASS 550lm 5W 850 92 SS IP67	MI44800617	94	92	5	550	110	GLASS	10	80	5000	67	SST
URO NGROUND STANDARD ECONOMY RD 220-240V AC GLASS 550lm 5W 850 92 SS IP67	MI49669610	94	92	5	550	110	GLASS	20	80	5000	67	SST
