CLUB C2CLUB C2



Všeobecné údaje
Application | Glass dome decorative pendant luminaire suitable for mounting in any luxurious interior, residental, retail, office/conference rooms. |
---|---|
Product Shape | Oval |
Type | Decorative |
Elektrické údaje
Main Feed AC [V] | 220-240 |
---|---|
Total Consumption [W] | 9 |
Optika
Diffuser Material | Ecofriendly ceramic material |
---|---|
TYPE OF CONTROL | ON/OFF |
CONTROL SYSTEM | ON/OFF - driver included |
Technické údaje
Total Consumption [W] | 9 |
---|---|
Lumen Output [LM] | 1008, 1066 |
Diffuser Material | Ecofriendly ceramic material |
Beam Angle [°] | 60 |
Light Distribution DIR/IND | DIR |
LED Color Temperature CCT [K] | 2700, 3000 |
Color Rendering Index [CRI] | 90 |
MacAdam step | 3 |
TYPE OF CONTROL | ON/OFF |
Body Color | Code 02: black painted , Code 06: white painted, * wiring always in black color (max 250mm) |
Ingress Protection [IP] | 20 |
Main Feed AC [V] | 220-240 |
Diameter ø [mm] | 20 |
Všeobecné údaje
Application | Glass dome decorative pendant luminaire suitable for mounting in any luxurious interior, residental, retail, office/conference rooms. |
---|---|
Product Shape | Oval |
Type | Decorative |
Elektrické údaje
Main Feed AC [V] | 220-240 |
---|---|
Total Consumption [W] | 9 |
Optika
Diffuser Material | Ecofriendly ceramic material |
---|---|
TYPE OF CONTROL | ON/OFF |
CONTROL SYSTEM | ON/OFF - driver included |
Technické údaje
Total Consumption [W] | 9 |
---|---|
Lumen Output [LM] | 1008, 1066 |
Diffuser Material | Ecofriendly ceramic material |
Beam Angle [°] | 60 |
Light Distribution DIR/IND | DIR |
LED Color Temperature CCT [K] | 2700, 3000 |
Color Rendering Index [CRI] | 90 |
MacAdam step | 3 |
TYPE OF CONTROL | ON/OFF |
Body Color | Code 02: black painted , Code 06: white painted, * wiring always in black color (max 250mm) |
Ingress Protection [IP] | 20 |
Main Feed AC [V] | 220-240 |
Diameter ø [mm] | 20 |
Kryt
Body Color | Code 02: black painted , Code 06: white painted, * wiring always in black color (max 250mm) |
---|
Svetelno-technické údaje
Light Source | LED |
---|---|
Total Consumption [W] | 9 |
Lumen Output [LM] | 1008, 1066 |
LED Color Temperature CCT [K] | 2700, 3000 |
Color Rendering Index [CRI] | 90 |
MacAdam step | 3 |
Beam Angle [°] | 60 |
Light Distribution DIR/IND | DIR |
Technické údaje
TA [°C] | 0 to +35 |
---|---|
Ingress Protection [IP] | 20 |

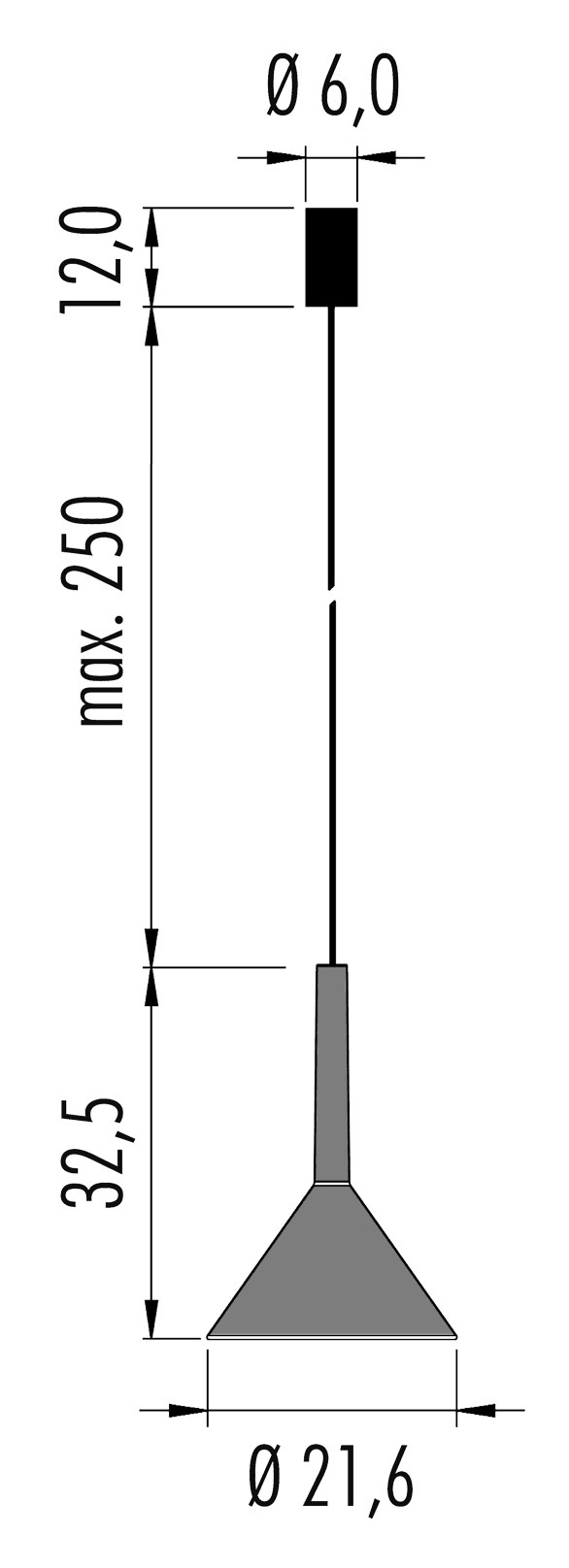

Rozmery
Diameter ø [mm] | 20 |
---|
