DIU SURFACE OPAL 600lm 8W 830 644 WH IP20 ON/OFF
Item No. MI118536423
DIU SURFACE

DIU SURFACE OPAL 600lm 8W 830 644 WH IP20 ON/OFF

MI118536423

Všeobecné údaje
Key Advantages

Various optics versions designed to suit any applications and requirements: OPAL ensuring highest performance, comfort, light uniformity and glare-eliminating reflectors.

Product ShapeLinear, Rectangular
MountingS
Elektrické údaje
Main Feed AC [V]220-240
Main Feed Frequency [Hz]50-60
Total Consumption [W]8
IEC Protection ClassI
Optika
DiffuserOPAL
Type of ControlON/OFF
LED LIFETIME Ta25 [h]L80B50 100.000h
Technické údaje
Total Consumption [W]8
Lumen Output [LM]600
Efficacy [lm/W]75
DiffuserOPAL
Beam Angle [°]90°
Light distributionDIR
CCT [K]3000
CRI80
MacAdam step3
LED LIFETIME Ta25 [h]L80B50 100.000h
Type of ControlON/OFF
Housing colorWHITE
IP20
Mechanical Protection [IK]07
Main Feed AC [V]220-240
Dimensions (length, width, height)644 x 58 x 83 mm [LxWxH]
Popis:

PROLINE family is an elegant and timeless linear system that allows to create captivating arrangements in any interior. It’s modern design and simple construction make it a great choice for general as well as decorative lighting in any interiors from residential to any public areas.

Key Advantages:

Various optics versions designed to suit any applications and requirements: OPAL ensuring highest performance, comfort, light uniformity and glare-eliminating reflectors.

Na stiahnutie:
Technický list:
1
Montážne pokyny:
1
Certifikáty:
1

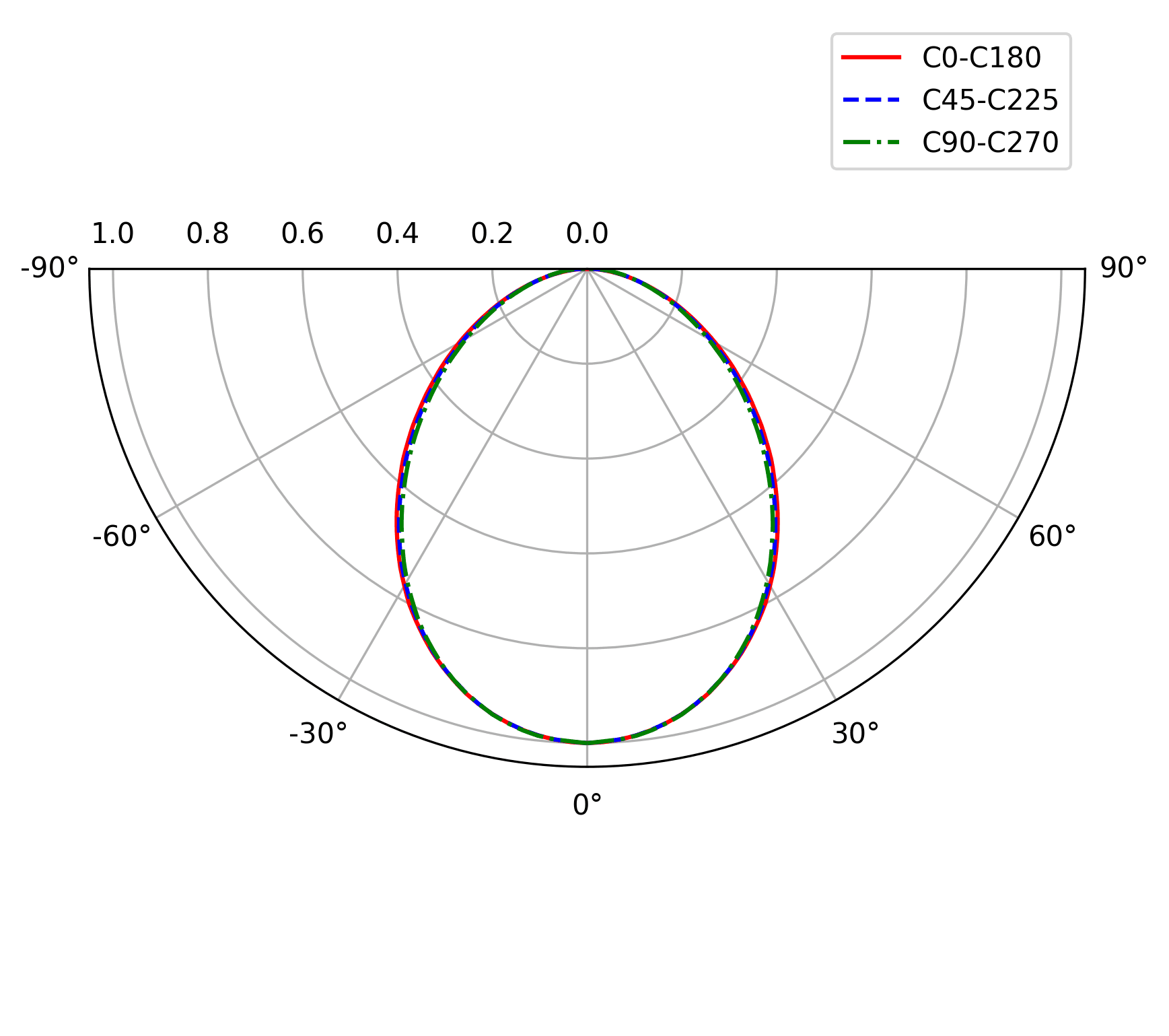

Fotometrické dáta:
1
/soft4net/img/project/icons/DO WSZYSTKICH PRODUKTOW/CE.svg
/soft4net/img/project/icons/AD - IP/20.svg
/soft4net/img/project/icons/J - MOUNTING/S.svg
/soft4net/img/project/icons/W - HOUSING COLOR/WHITE.svg
/soft4net/img/project/icons/Y + Z - CCT K + CRI/3000_80.svg
DIU SURFACE
Všeobecné údaje
Key Advantages

Various optics versions designed to suit any applications and requirements: OPAL ensuring highest performance, comfort, light uniformity and glare-eliminating reflectors.

Product ShapeLinear, Rectangular
MountingS
Elektrické údaje
Main Feed AC [V]220-240
Main Feed Frequency [Hz]50-60
Total Consumption [W]8
IEC Protection ClassI
Optika
DiffuserOPAL
Type of ControlON/OFF
LED LIFETIME Ta25 [h]L80B50 100.000h
Technické údaje
Total Consumption [W]8
Lumen Output [LM]600
Efficacy [lm/W]75
DiffuserOPAL
Beam Angle [°]90°
Light distributionDIR
CCT [K]3000
CRI80
MacAdam step3
LED LIFETIME Ta25 [h]L80B50 100.000h
Type of ControlON/OFF
Housing colorWHITE
IP20
Mechanical Protection [IK]07
Main Feed AC [V]220-240
Dimensions (length, width, height)644 x 58 x 83 mm [LxWxH]
Kryt
Housing colorWHITE
RALAny upon request
FinishMatt, Gloss
Svetelno-technické údaje
Light SourcePCB LED
Total Consumption [W]8
Lumen Output [LM]600
Efficacy [lm/W]75
CCT [K]3000
CRI80
UGR<19
MacAdam step3
Beam Angle [°]90°
Light distributionDIR
Technické údaje
IP20
Mechanical Protection [IK]07
Corrosion ClassC3
Rozmery
Dimensions (length, width, height)644 x 58 x 83 mm [LxWxH]
