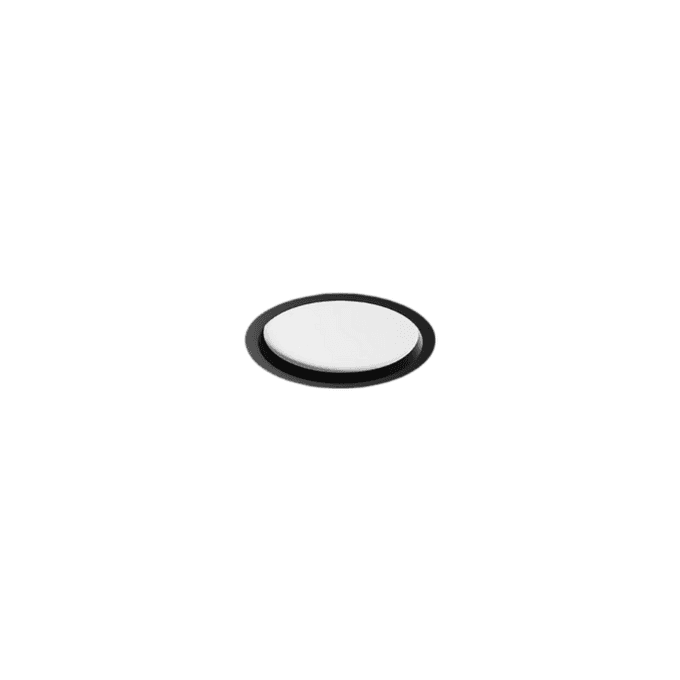

HERO R 108
HERO R 108

Všeobecné údaje
Application

Ideal for residential spaces, offices and commercial areas, retails and showrooms, restaurants, hotels, public spaces and as accent lighting.

Product ShapeRound
MountingRecessed
Elektrické údaje
Main Feed AC [V]220-240
Main Feed Frequency [Hz]50-60
Total Consumption [W]8
IEC Protection ClassI
Optika
Diffuser Material DesignPMMA
CONTROL SYSTEMON/OFF, DALI
LED LIFETIME Ta25 [h]L80B50 50.000h
Technické údaje
Total Consumption [W]8
Lumen Output [LM]850
Efficacy lm/W107
Body MaterialAluminium
Beam Angle [°]100°
Light Distribution DIR/INDDIR
LED Color Temperature CCT [K]3000, 4000
Color Rendering Index [CRI]80, 90
MacAdam step3
LED LIFETIME Ta25 [h]L80B50 50.000h
Body ColorWHITE, BLACK, GRAY
Ingress Protection [IP]44
Mechanical Protection [IK]1
Main Feed AC [V]220-240
Diameter ø [mm]108
Popis:

HERO R series is a ultra-modern recessed ceiling light. Featuring a sleek, low-profile frame and a high-quality diffuser, this fixture seamlessly blends style and functionality. Perfect for residential and commercial interiors, it offers uniform, glare-free illumination, enhancing the ambiance of any room. Available in six dimensions – ø108mm, ø128mm, ø150mm, ø180mm, ø200mm, ø240mm.

Na stiahnutie:
Technický list:
1
Technické ilustrácie:
1
Montážne pokyny:
1
Certifikáty:
1
Fotometrické dáta:
1
/soft4net/img/project/icons/DO WSZYSTKICH PRODUKTOW/CE.svg
/soft4net/img/project/icons/AB - TYPE OF CONTROL/DALI.svg
/soft4net/img/project/icons/AB - TYPE OF CONTROL/ON_OFF.svg
/soft4net/img/project/icons/W - HOUSING COLOR/BLACK.svg
/soft4net/img/project/icons/W - HOUSING COLOR/GREY.svg
/soft4net/img/project/icons/W - HOUSING COLOR/WHITE.svg
/soft4net/img/project/icons/Y + Z - CCT K + CRI/3000_80.svg
/soft4net/img/project/icons/Y + Z - CCT K + CRI/3000_90.svg
/soft4net/img/project/icons/Y + Z - CCT K + CRI/4000_80.svg
/soft4net/img/project/icons/Y + Z - CCT K + CRI/4000_90.svg
HERO R 108
Všeobecné údaje
Application

Ideal for residential spaces, offices and commercial areas, retails and showrooms, restaurants, hotels, public spaces and as accent lighting.

Product ShapeRound
MountingRecessed
Elektrické údaje
Main Feed AC [V]220-240
Main Feed Frequency [Hz]50-60
Total Consumption [W]8
IEC Protection ClassI
Optika
Diffuser Material DesignPMMA
CONTROL SYSTEMON/OFF, DALI
LED LIFETIME Ta25 [h]L80B50 50.000h
Technické údaje
Total Consumption [W]8
Lumen Output [LM]850
Efficacy lm/W107
Body MaterialAluminium
Beam Angle [°]100°
Light Distribution DIR/INDDIR
LED Color Temperature CCT [K]3000, 4000
Color Rendering Index [CRI]80, 90
MacAdam step3
LED LIFETIME Ta25 [h]L80B50 50.000h
Body ColorWHITE, BLACK, GRAY
Ingress Protection [IP]44
Mechanical Protection [IK]1
Main Feed AC [V]220-240
Diameter ø [mm]108
Kryt
Body MaterialAluminium
Body ColorWHITE, BLACK, GRAY
Svetelno-technické údaje
Light SourceLED
Total Consumption [W]8
Lumen Output [LM]850
Efficacy lm/W107
LED Color Temperature CCT [K]3000, 4000
Color Rendering Index [CRI]80, 90
MacAdam step3
Beam Angle [°]100°
Light Distribution DIR/INDDIR
Technické údaje
TA [°C]-20C° / +40C°
Ingress Protection [IP]44
Mechanical Protection [IK]1
Rozmery
Diameter ø [mm]108
