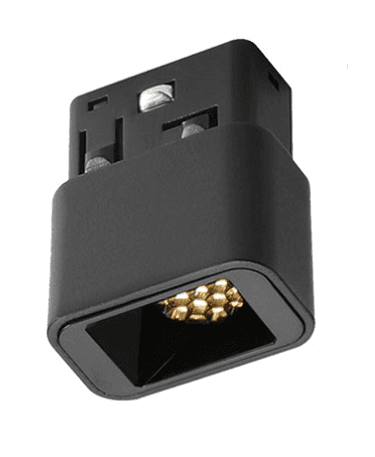

MAG LENS SPOT RECT 2W 3000K BL HONEYCOMB 160lm 2W 830 35 BL IP20 ON/OFF
Item No. MI1.MAG.DGY02.2.3000.RECT.BL
MAGNETIC LENS SPOT RECTANGULAR

MAG LENS SPOT RECT 2W 3000K BL HONEYCOMB 160lm 2W 830 35 BL IP20 ON/OFF

MI1.MAG.DGY02.2.3000.RECT.BL

Všeobecné údaje
ApplicationMAGNETIC TRACK 1 PHASE
MountingSURFACE, PENDANT
Elektrické údaje
Total Consumption [W]2
Optika
DiffuserHONEYCOMB
Type of ControlON/OFF
Technické údaje
Total Consumption [W]2
Lumen Output [LM]160
Efficacy [lm/W]80
DiffuserHONEYCOMB
Housing MaterialALUMINIUM
Beam Angle [°]24
Light distributionDIR
CCT [K]3000
CRI80
Type of ControlON/OFF
Housing colorBLACK
IP20
Dimensions (length, width, height)35 x 20 x 25 mm [LxWxH]
Na stiahnutie:
Technický list:
1
Montážne pokyny:
1
Certifikáty:
1
Fotometrické dáta:
1
/soft4net/img/project/icons/DO WSZYSTKICH PRODUKTOW/CE.svg
/soft4net/img/project/icons/AD - IP/20.svg
/soft4net/img/project/icons/W - HOUSING COLOR/BLACK.svg
/soft4net/img/project/icons/Y + Z - CCT K + CRI/3000_80.svg
Všeobecné údaje
ApplicationMAGNETIC TRACK 1 PHASE
MountingSURFACE, PENDANT
Elektrické údaje
Total Consumption [W]2
Optika
DiffuserHONEYCOMB
Type of ControlON/OFF
Technické údaje
Total Consumption [W]2
Lumen Output [LM]160
Efficacy [lm/W]80
DiffuserHONEYCOMB
Housing MaterialALUMINIUM
Beam Angle [°]24
Light distributionDIR
CCT [K]3000
CRI80
Type of ControlON/OFF
Housing colorBLACK
IP20
Dimensions (length, width, height)35 x 20 x 25 mm [LxWxH]
Kryt
Housing MaterialALUMINIUM
Housing colorBLACK
Svetelno-technické údaje
Total Consumption [W]2
Lumen Output [LM]160
Efficacy [lm/W]80
CCT [K]3000
CRI80
Beam Angle [°]24
Light distributionDIR
Technické údaje
IP20
Rozmery
Dimensions (length, width, height)35 x 20 x 25 mm [LxWxH]
