ONYX R90 OPAL 350lm 5W 930 BL WH IP44 ON/OFF
Item No. MI100593410
ONYX 90

ONYX R90 OPAL 350lm 5W 930 BL WH IP44 ON/OFF

MI100593410

Všeobecné údaje
Key Advantages

Various optic beam angle versions designed to suit any applications and requirements.

Product ShapeRound
TypeDownlight
MountingR
Mounting Opening75
Elektrické údaje
Main Feed AC [V]220-240
Main Feed Frequency [Hz]50-60
Total Consumption [W]5
IEC Protection ClassI
Optika
DiffuserOPAL
Type of ControlON/OFF
LED LIFETIME Ta25 [h]L80B10 60.000h
Technické údaje
Total Consumption [W]5
Lumen Output [LM]350
Efficacy [lm/W]70
DiffuserOPAL
Beam Angle [°]67°
Light distributionDIR
CCT [K]3000
CRI90
MacAdam step3
LED LIFETIME Ta25 [h]L80B10 60.000h
Type of ControlON/OFF
Housing colorBLACK, WHITE
IP44
Mechanical Protection [IK]01
Main Feed AC [V]220-240
Popis:

A small, configurable spotlight – recessed downlight for interior lighting. A wide range of technical parameter and luminaire appearance variants for versatile applications. COB technology and a high-performance, metalized, facetted plastic reflector guarantee the optimum construction of the optical system and a high efficiency.

Key Advantages:

Various optic beam angle versions designed to suit any applications and requirements.

Na stiahnutie:
Technický list:
1
Montážne pokyny:
1
Certifikáty:
1

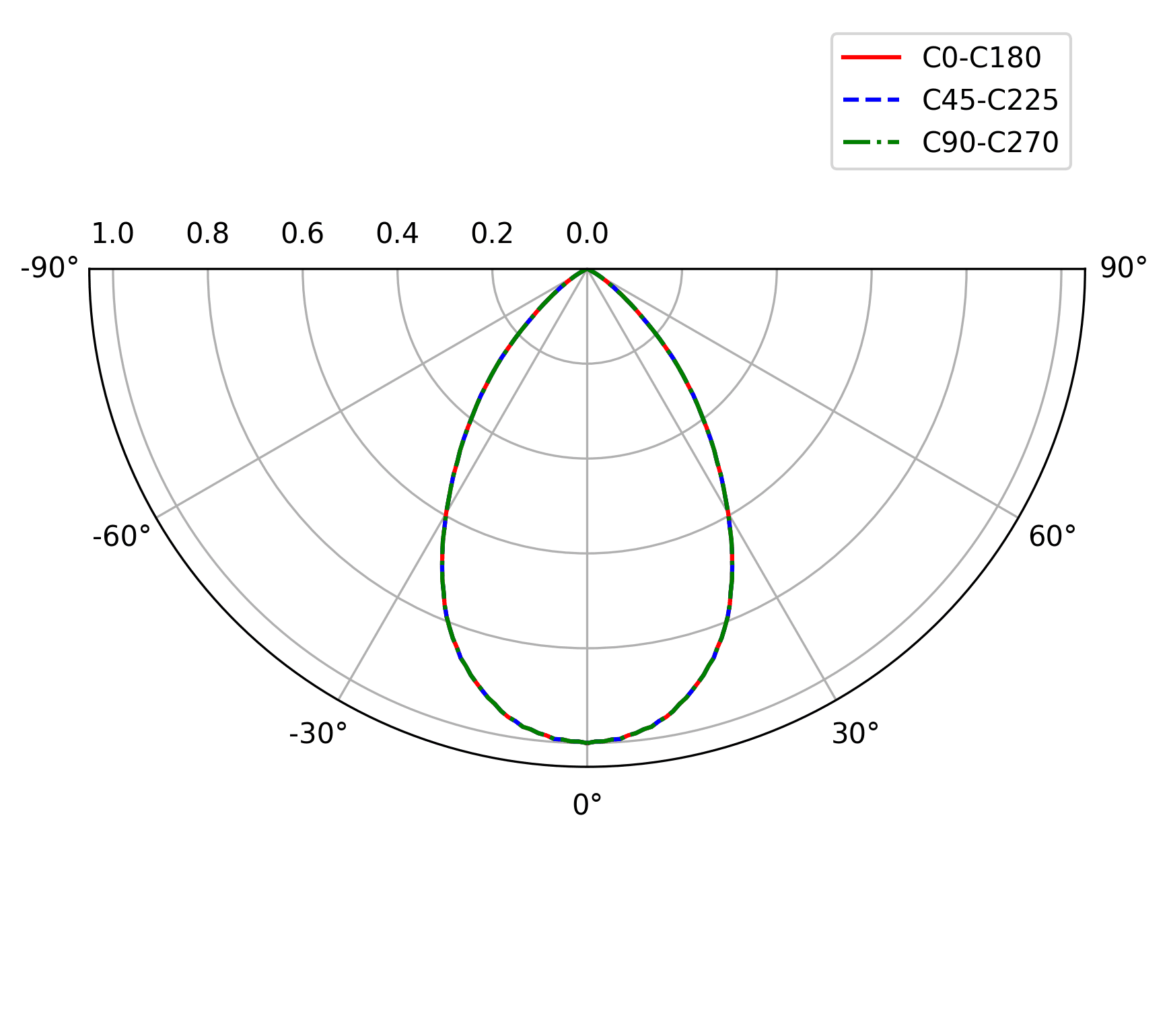

Fotometrické dáta:
1
/soft4net/img/project/icons/DO WSZYSTKICH PRODUKTOW/CE.svg
/soft4net/img/project/icons/AD - IP/44.svg
/soft4net/img/project/icons/J - MOUNTING/R.svg
/soft4net/img/project/icons/W - HOUSING COLOR/BLACK_WHITE.svg
/soft4net/img/project/icons/Y + Z - CCT K + CRI/3000_90.svg
ONYX 90
Všeobecné údaje
Key Advantages

Various optic beam angle versions designed to suit any applications and requirements.

Product ShapeRound
TypeDownlight
MountingR
Mounting Opening75
Elektrické údaje
Main Feed AC [V]220-240
Main Feed Frequency [Hz]50-60
Total Consumption [W]5
IEC Protection ClassI
Optika
DiffuserOPAL
Type of ControlON/OFF
LED LIFETIME Ta25 [h]L80B10 60.000h
Technické údaje
Total Consumption [W]5
Lumen Output [LM]350
Efficacy [lm/W]70
DiffuserOPAL
Beam Angle [°]67°
Light distributionDIR
CCT [K]3000
CRI90
MacAdam step3
LED LIFETIME Ta25 [h]L80B10 60.000h
Type of ControlON/OFF
Housing colorBLACK, WHITE
IP44
Mechanical Protection [IK]01
Main Feed AC [V]220-240
Kryt
Housing colorBLACK, WHITE
FinishMatt, Gloss
Svetelno-technické údaje
Light SourceLED
Total Consumption [W]5
Lumen Output [LM]350
Efficacy [lm/W]70
CCT [K]3000
CRI90
MacAdam step3
Beam Angle [°]67°
Light distributionDIR
Technické údaje
IP44
Mechanical Protection [IK]01
Generating PDF...

Technické ilustrácie

ONYX 90
