SOLUS 100 LENS 590lm 6W 930 WH IP20 ON/OFF
Item No. MI106982100
SOLUS 100

SOLUS 100 LENS 590lm 6W 930 WH IP20 ON/OFF

MI106982100

Všeobecné údaje
Key Advantages

Various optic beam angle versions designed to suit any applications and requirements.

Product ShapeRound
TypeDownlight
MountingR
Mounting Opening90
Elektrické údaje
Main Feed AC [V]220-240
Main Feed Frequency [Hz]50-60
Total Consumption [W]6
IEC Protection ClassI
Optika
DiffuserLENS
Type of ControlON/OFF
LED LIFETIME Ta25 [h]L80B10 60.000h
Technické údaje
Total Consumption [W]6
Lumen Output [LM]590
Efficacy [lm/W]98
DiffuserLENS
Beam Angle [°]36°
Light distributionDIR
CCT [K]3000
CRI90
MacAdam step3
LED LIFETIME Ta25 [h]L80B10 60.000h
Type of ControlON/OFF
Housing colorWHITE
IP20
Mechanical Protection [IK]01
Main Feed AC [V]220-240
Popis:

A small, configurable spotlight – recessed downlight for interior lighting. A wide range of technical parameter and luminaire appearance variants for versatile applications. COB technology and a high-performance, metalized, facetted plastic reflector guarantee the optimum construction of the optical system and a high efficiency.

Key Advantages:

Various optic beam angle versions designed to suit any applications and requirements.

Na stiahnutie:
Technický list:
1
Montážne pokyny:
1
Certifikáty:
1

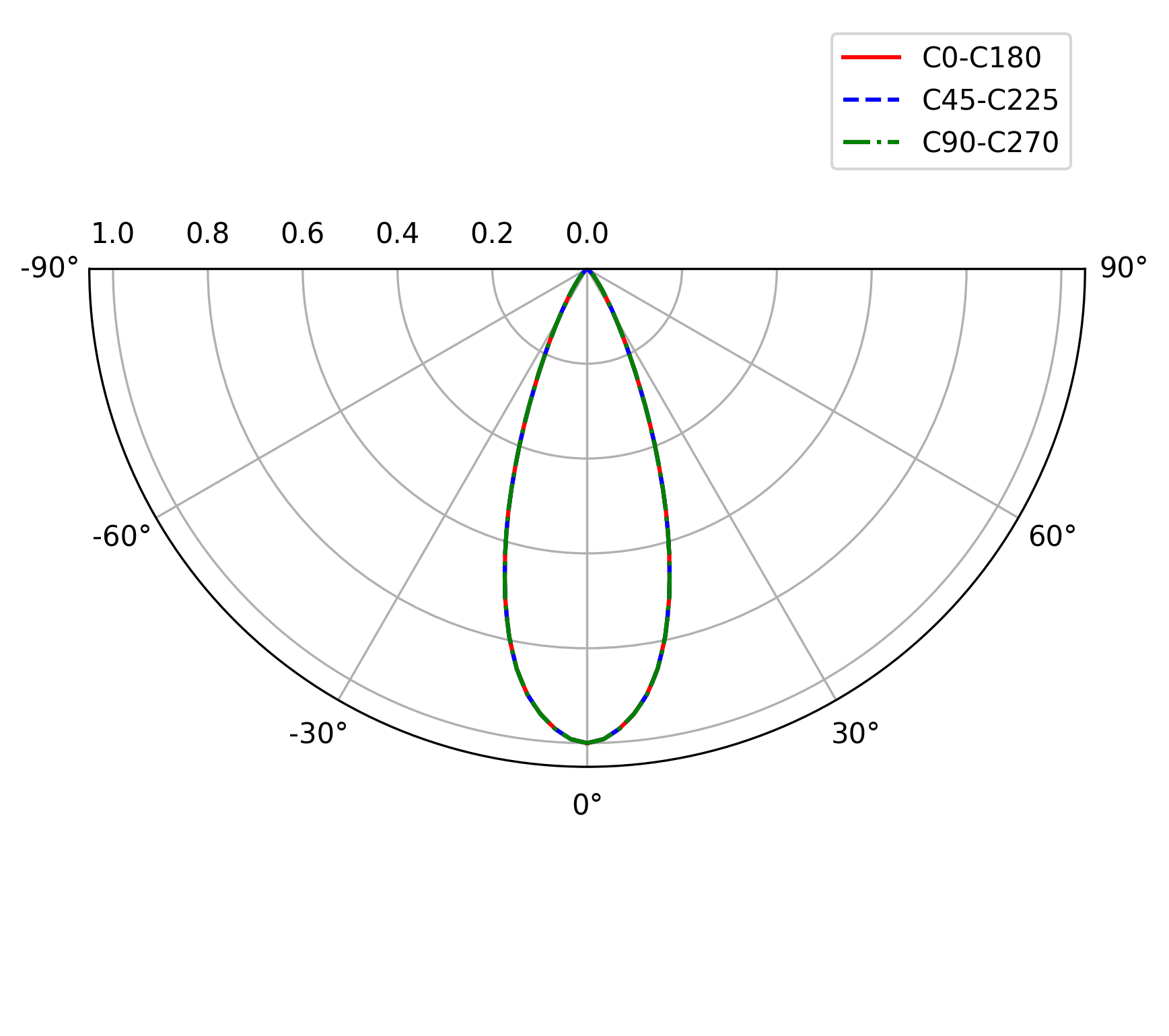

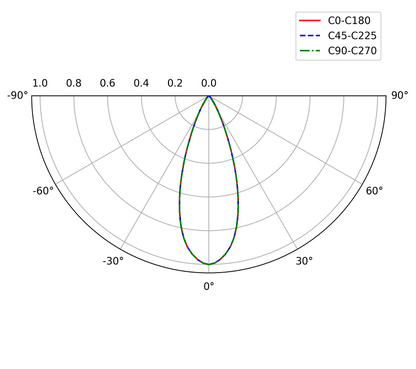

Fotometrické dáta:
1
/soft4net/img/project/icons/DO WSZYSTKICH PRODUKTOW/CE.svg
/soft4net/img/project/icons/AD - IP/20.svg
/soft4net/img/project/icons/J - MOUNTING/R.svg
/soft4net/img/project/icons/W - HOUSING COLOR/WHITE.svg
/soft4net/img/project/icons/Y + Z - CCT K + CRI/3000_90.svg
SOLUS 100
Všeobecné údaje
Key Advantages

Various optic beam angle versions designed to suit any applications and requirements.

Product ShapeRound
TypeDownlight
MountingR
Mounting Opening90
Elektrické údaje
Main Feed AC [V]220-240
Main Feed Frequency [Hz]50-60
Total Consumption [W]6
IEC Protection ClassI
Optika
DiffuserLENS
Type of ControlON/OFF
LED LIFETIME Ta25 [h]L80B10 60.000h
Technické údaje
Total Consumption [W]6
Lumen Output [LM]590
Efficacy [lm/W]98
DiffuserLENS
Beam Angle [°]36°
Light distributionDIR
CCT [K]3000
CRI90
MacAdam step3
LED LIFETIME Ta25 [h]L80B10 60.000h
Type of ControlON/OFF
Housing colorWHITE
IP20
Mechanical Protection [IK]01
Main Feed AC [V]220-240
Kryt
Housing colorWHITE
FinishMatt, Gloss
Svetelno-technické údaje
Light SourceLED
Total Consumption [W]6
Lumen Output [LM]590
Efficacy [lm/W]98
CCT [K]3000
CRI90
MacAdam step3
Beam Angle [°]36°
Light distributionDIR
Technické údaje
IP20
Mechanical Protection [IK]01
Generating PDF...

Technické ilustrácie

SOLUS 100
