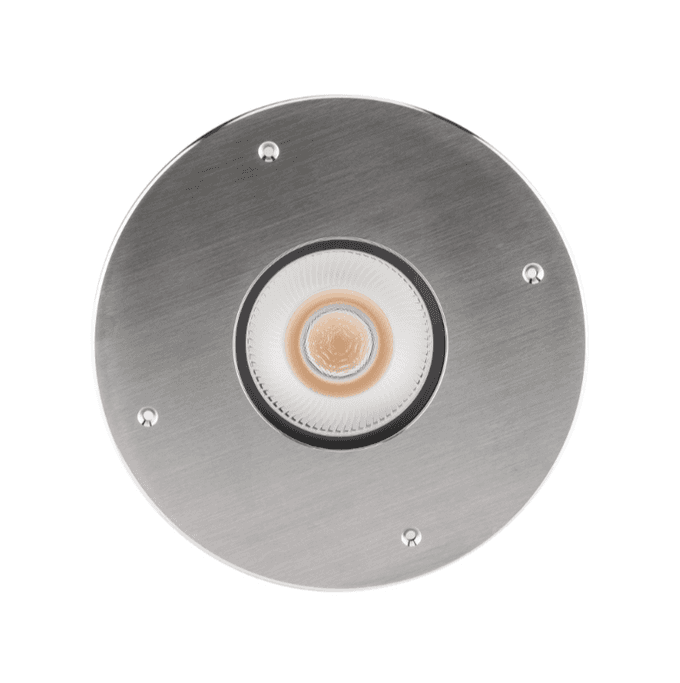

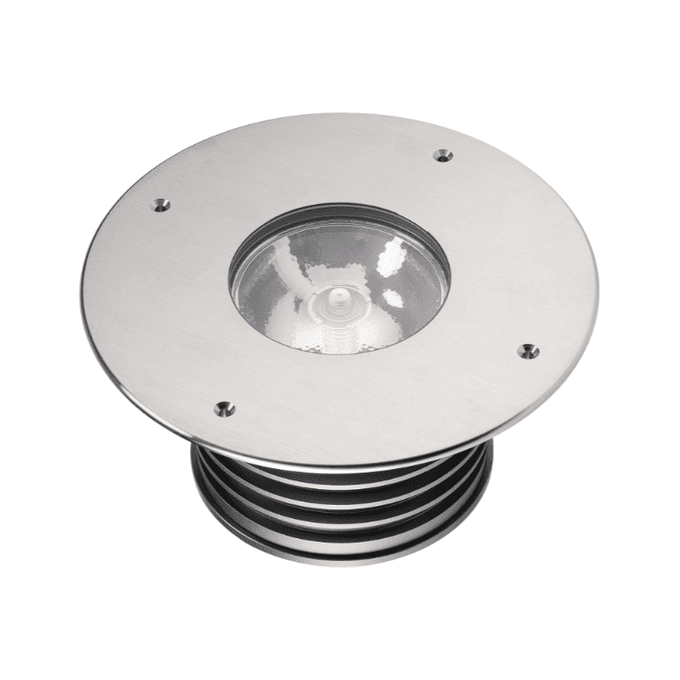

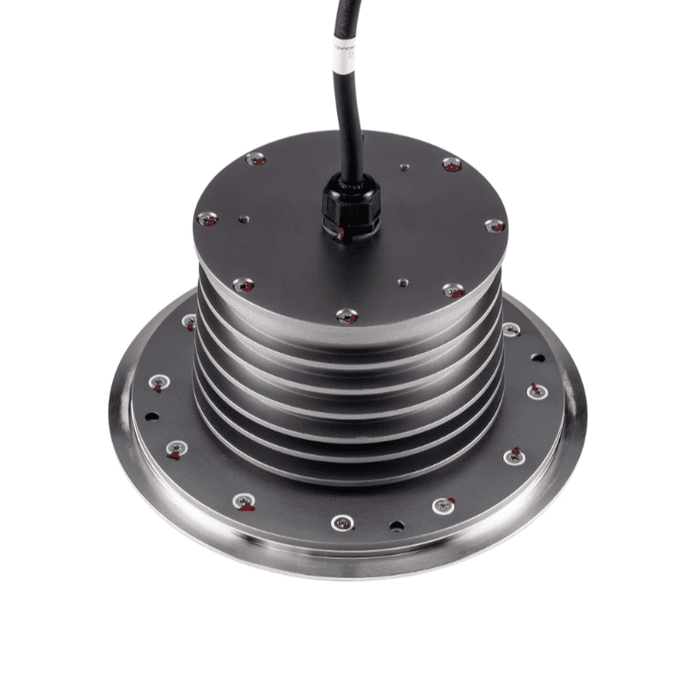

URO BIG RD RGBW 12/24VDC
URO BIG RD RGBW 12/24VDC

Všeobecné údaje
Application

In-ground

Key Advantages

Variety of light distribution beam angles, power options W, shape designs and dimming options.

Product ShapeRound
TypeIllumination
MountingIn-ground
Elektrické údaje
Main Feed AC [V]230VAC ~ 12/24 VDC
Main Feed Frequency [Hz]50-60
Total Consumption [W]40
IEC Protection ClassIII
Connector Type0.5m
WiringJZ-600 5G1
Optika
Diffuser MaterialTempered glass
CONTROL SYSTEMON-OFF, PWM
LED LIFETIME Ta25 [h]≥ 65 000h
Technické údaje
Total Consumption [W]40
Lumen Output [LM]W660-810R315G500B245
Efficacy lm/WN/A
Diffuser MaterialTempered glass
Body MaterialSS316L, ALU
Beam Angle [°]10, 20, 30, 45
Light Distribution DIR/INDDIR
LED Color Temperature CCT [K]3000, 4000, 5000
Color Rendering Index [CRI]80
MacAdam step<3
LED LIFETIME Ta25 [h]≥ 65 000h
Body ColorSST
Ingress Protection [IP]67
Mechanical Protection [IK]10
Main Feed AC [V]230VAC ~ 12/24 VDC
Diameter ø [mm]216.5
Popis:

URO BIG RGBW series has been designed using modern simulation methods to achieve the highest quality product. These luminaires are made of the highest quality materials, such as marine steel, high purity glass for optical applications, modern CREE LED®. MILIA URO BIG RGBW luminaire can be used to illuminate a wide range of places and objects, such as: landscape, parks, gardens, terraces, squares, plants.

Key Advantages:

Variety of light distribution beam angles, power options W, shape designs and dimming options.

Na stiahnutie:
Technický list:
1
Technické ilustrácie:
1
Montážne pokyny:
1
Certifikáty:
1
Fotometrické dáta:
1
/soft4net/img/project/icons/DO WSZYSTKICH PRODUKTOW/CE.svg
/soft4net/img/project/icons/AD - IP/67.svg
/soft4net/img/project/icons/Y + Z - CCT K + CRI/3000_80.svg
/soft4net/img/project/icons/Y + Z - CCT K + CRI/4000_80.svg
Všeobecné údaje
Application

In-ground

Key Advantages

Variety of light distribution beam angles, power options W, shape designs and dimming options.

Product ShapeRound
TypeIllumination
MountingIn-ground
Elektrické údaje
Main Feed AC [V]230VAC ~ 12/24 VDC
Main Feed Frequency [Hz]50-60
Total Consumption [W]40
IEC Protection ClassIII
Connector Type0.5m
WiringJZ-600 5G1
Optika
Diffuser MaterialTempered glass
CONTROL SYSTEMON-OFF, PWM
LED LIFETIME Ta25 [h]≥ 65 000h
Technické údaje
Total Consumption [W]40
Lumen Output [LM]W660-810R315G500B245
Efficacy lm/WN/A
Diffuser MaterialTempered glass
Body MaterialSS316L, ALU
Beam Angle [°]10, 20, 30, 45
Light Distribution DIR/INDDIR
LED Color Temperature CCT [K]3000, 4000, 5000
Color Rendering Index [CRI]80
MacAdam step<3
LED LIFETIME Ta25 [h]≥ 65 000h
Body ColorSST
Ingress Protection [IP]67
Mechanical Protection [IK]10
Main Feed AC [V]230VAC ~ 12/24 VDC
Diameter ø [mm]216.5
Kryt
Body MaterialSS316L, ALU
Body ColorSST
Svetelno-technické údaje
Light SourceLED
Total Consumption [W]40
Lumen Output [LM]W660-810R315G500B245
Efficacy lm/WN/A
LED Color Temperature CCT [K]3000, 4000, 5000
Color Rendering Index [CRI]80
MacAdam step<3
Beam Angle [°]10, 20, 30, 45
Light Distribution DIR/INDDIR
Technické údaje
TA [°C]-20 to +55
Ingress Protection [IP]67
Mechanical Protection [IK]10
Corrosion ClassC3, C4

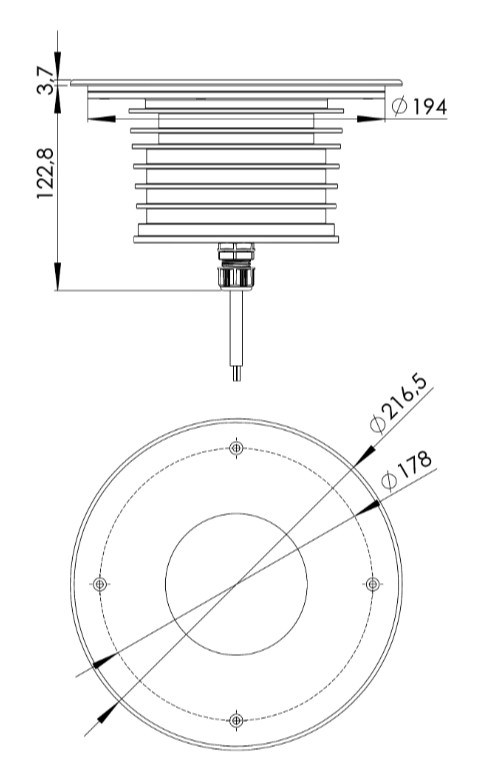

Rozmery
Diameter ø [mm]216.5
Generating PDF...

Varianty

Item
Code
Lenght
Width
Height
Diameter
W
Lumen
Output lm
Efficacy
lm/W
Diffuser
Beam
Angle
CRI
Color K
Type of
Control
IP
Color
GLASS 660lm 40W 830 216.5 SS IP67MI6163434123216.540660GLASS2480300067SST
GLASS 660lm 40W 830 216.5 SS IP67MI9052990123216.540660GLASS3880300067SST
GLASS 660lm 40W 830 216.5 SS IP67MI6209287123216.540660GLASS2480300067SST
GLASS 660lm 40W 830 216.5 SS IP67MI4027347123216.540660GLASS3880300067SST
GLASS 710lm 40W 840 216.5 SS IP67MI681911123216.540710GLASS2480400067SST
GLASS 710lm 40W 840 216.5 SS IP67MI5578575123216.540710GLASS3880400067SST
GLASS 710lm 40W 840 216.5 SS IP67MI8663739123216.540710GLASS2480400067SST
GLASS 710lm 40W 840 216.5 SS IP67MI3358990123216.540710GLASS3880400067SST
GLASS 810lm 40W 850 216.5 SS IP67MI6856845123216.540810GLASS2480500067SST
GLASS 810lm 40W 850 216.5 SS IP67MI6190964123216.540810GLASS2480500067SST
GLASS 810lm 40W 850 216.5 SS IP67MI7395766123216.540810GLASS3880500067SST
GLASS 810lm 40W 850 216.5 SS IP67MI1680389123216.540810GLASS3880500067SST
Zobraziť na stránku: 25 / 50 / 75 / 100 | Strana 1 z 1
