URO BIG SQ RGBW 12/24VDC
URO BIG SQ RGBW 12/24VDC

Všeobecné údaje
Application

In-ground

Key Advantages

Variety of light distribution beam angles, power options W, shape designs and dimming options.

Product ShapeSquare
TypeIllumination
MountingIn-ground
Elektrické údaje
Main Feed AC [V]230VAC ~ 12/24 VDC
Main Feed Frequency [Hz]50-60
Total Consumption [W]40
IEC Protection ClassIII
Connector Type0.5m
WiringJZ-600 5G1
Optika
Diffuser MaterialTempered glass
CONTROL SYSTEMON-OFF, PWM
LED LIFETIME Ta25 [h]≥ 65 000h
Technické údaje
Total Consumption [W]40
Lumen Output [LM]W660-810R315G500B245
Efficacy lm/WN/A
Diffuser MaterialTempered glass
Body MaterialSS316L, ALU
Beam Angle [°]10, 20, 30, 45
Light Distribution DIR/INDDIR
LED Color Temperature CCT [K]3000, 4000, 5000
Color Rendering Index [CRI]80
MacAdam step<3
LED LIFETIME Ta25 [h]≥ 65 000h
Body ColorSST
Ingress Protection [IP]67
Mechanical Protection [IK]10
Main Feed AC [V]230VAC ~ 12/24 VDC
Popis:

URO BIG RGBW series has been designed using modern simulation methods to achieve the highest quality product. These luminaires are made of the highest quality materials, such as marine steel, high purity glass for optical applications, modern CREE LED®. MILIA URO BIG RGBW luminaire can be used to illuminate a wide range of places and objects, such as: landscape, parks, gardens, terraces, squares, plants.

Key Advantages:

Variety of light distribution beam angles, power options W, shape designs and dimming options.

Na stiahnutie:
Technický list:
1

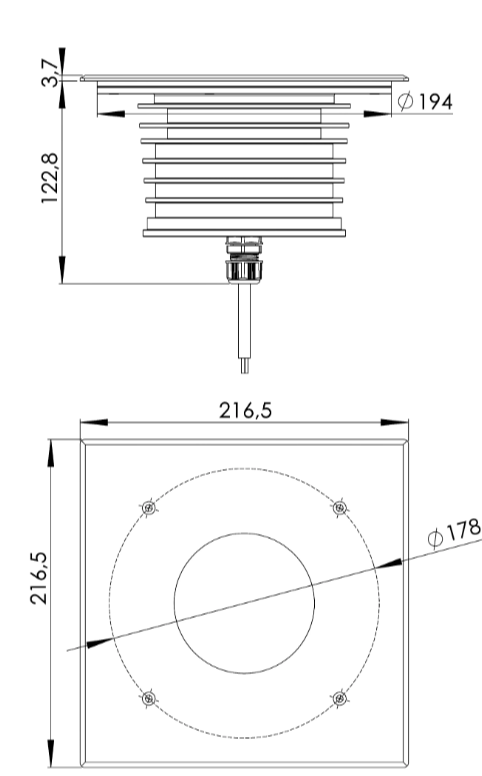

Technické ilustrácie:
1
Montážne pokyny:
1
Certifikáty:
1
Fotometrické dáta:
1
/soft4net/img/project/icons/DO WSZYSTKICH PRODUKTOW/CE.svg
/soft4net/img/project/icons/AD - IP/67.svg
/soft4net/img/project/icons/Y + Z - CCT K + CRI/3000_80.svg
/soft4net/img/project/icons/Y + Z - CCT K + CRI/4000_80.svg
Všeobecné údaje
Application

In-ground

Key Advantages

Variety of light distribution beam angles, power options W, shape designs and dimming options.

Product ShapeSquare
TypeIllumination
MountingIn-ground
Elektrické údaje
Main Feed AC [V]230VAC ~ 12/24 VDC
Main Feed Frequency [Hz]50-60
Total Consumption [W]40
IEC Protection ClassIII
Connector Type0.5m
WiringJZ-600 5G1
Optika
Diffuser MaterialTempered glass
CONTROL SYSTEMON-OFF, PWM
LED LIFETIME Ta25 [h]≥ 65 000h
Technické údaje
Total Consumption [W]40
Lumen Output [LM]W660-810R315G500B245
Efficacy lm/WN/A
Diffuser MaterialTempered glass
Body MaterialSS316L, ALU
Beam Angle [°]10, 20, 30, 45
Light Distribution DIR/INDDIR
LED Color Temperature CCT [K]3000, 4000, 5000
Color Rendering Index [CRI]80
MacAdam step<3
LED LIFETIME Ta25 [h]≥ 65 000h
Body ColorSST
Ingress Protection [IP]67
Mechanical Protection [IK]10
Main Feed AC [V]230VAC ~ 12/24 VDC
Kryt
Body MaterialSS316L, ALU
Body ColorSST
Svetelno-technické údaje
Light SourceLED
Total Consumption [W]40
Lumen Output [LM]W660-810R315G500B245
Efficacy lm/WN/A
LED Color Temperature CCT [K]3000, 4000, 5000
Color Rendering Index [CRI]80
MacAdam step<3
Beam Angle [°]10, 20, 30, 45
Light Distribution DIR/INDDIR
Technické údaje
TA [°C]-20 to +55
Ingress Protection [IP]67
Mechanical Protection [IK]10
Corrosion ClassC3, C4
Generating PDF...

Varianty

Item
Code
Lenght
Width
Height
Diameter
W
Lumen
Output lm
Efficacy
lm/W
Diffuser
Beam
Angle
CRI
Color K
Type of
Control
IP
Color
GLASS 660lm 40W 830 216 SS IP67MI676196121721712340660GLASS2480300067SST
GLASS 660lm 40W 830 216 SS IP67MI897618921721712340660GLASS3880300067SST
GLASS 660lm 40W 830 216 SS IP67MI35587521721712340660GLASS2480300067SST
GLASS 660lm 40W 830 216 SS IP67MI365919821721712340660GLASS3880300067SST
GLASS 710lm 40W 840 216 SS IP67MI739009821721712340710GLASS2480400067SST
GLASS 710lm 40W 840 216 SS IP67MI453859721721712340710GLASS3880400067SST
GLASS 710lm 40W 840 216 SS IP67MI358178221721712340710GLASS2480400067SST
GLASS 710lm 40W 840 216 SS IP67MI381890221721712340710GLASS3880400067SST
GLASS 810lm 40W 850 216 SS IP67MI942514421721712340810GLASS2480500067SST
GLASS 810lm 40W 850 216 SS IP67MI721182921721712340810GLASS2480500067SST
GLASS 810lm 40W 850 216 SS IP67MI984855021721712340810GLASS3880500067SST
GLASS 810lm 40W 850 216 SS IP67MI780052321721712340810GLASS3880500067SST
